852-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K
SENSOR CONNECTOR, VULCON SERIES, M5, MALE, 4 POSITIONS, PCB PIN, STRAIGHT PANEL MOUNT
| Part | Insert Material | Contact Finish Thickness - Mating | Contact Material | Applications | Number of Positions | Termination | Color | Shielding | Contact Finish - Mating | Mounting Feature | Voltage Rating | Shell Material | Material Flammability Rating | Primary Material | Connector Type | Ingress Protection | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shell Size - Insert | Shell Finish | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

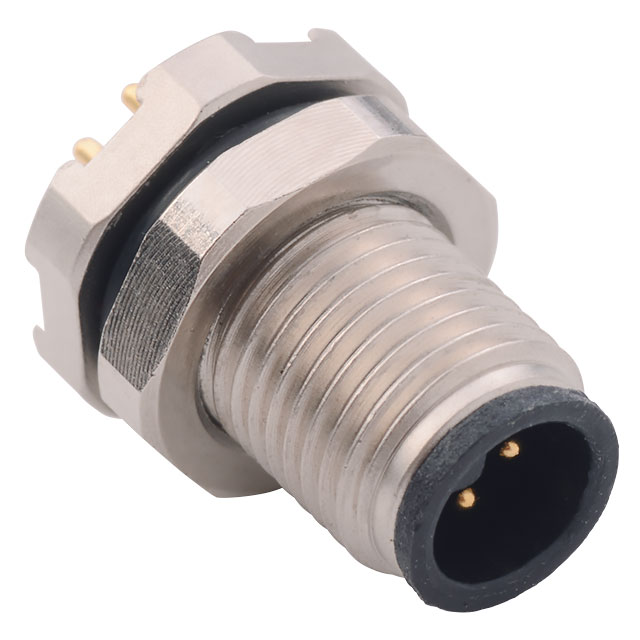

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Flash | Brass | Industrial Medical | 4 | Solder | Silver | Shielded | Gold | Bulkhead - Front Side Nut | 60 VDC | Brass | UL94 V-0 | Metal | Receptacle Male Pins | IP67 - Dust Tight Waterproof | Keyed | 85 °C | -40 C | Threaded | M5-4 | Nickel | Panel Mount Through Hole | ||

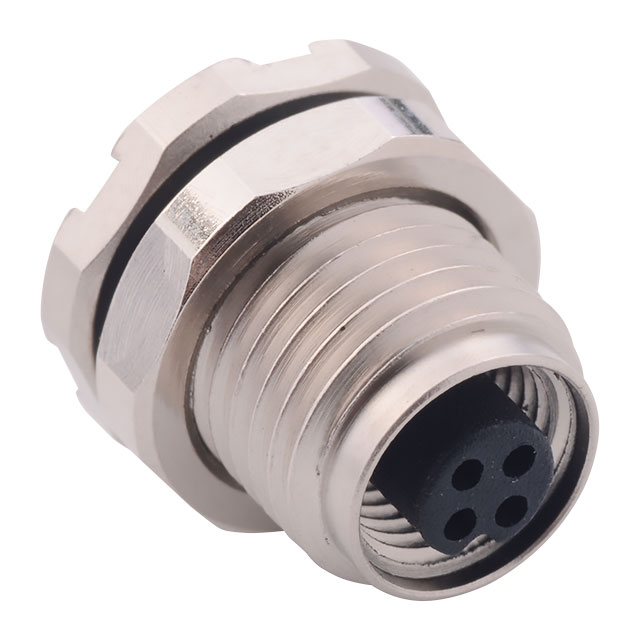

 NorComp Inc. | Polybutylene Terephthalate (PBT) | Flash | Brass | Industrial Medical | 4 | Solder | Silver | Shielded | Gold | Bulkhead - Front Side Nut | 60 VDC | Brass | UL94 V-0 | Metal | Plug Female Sockets | IP67 - Dust Tight Waterproof | Keyed | 85 °C | -40 C | Threaded | M5-4 | Nickel | Panel Mount Through Hole | ||
 NorComp Inc. | Polybutylene Terephthalate (PBT) | Brass | Industrial Medical | 4 | Solder | Silver | Shielded | Gold | Bulkhead - Front Side Nut | 60 VDC | Brass | UL94 V-0 | Metal | Receptacle Male Pins | IP67 - Dust Tight Waterproof | Keyed | 85 °C | -40 C | Threaded | M5-4 | Nickel | Panel Mount Through Hole | 0.25 µm | 10 µin |
