2109-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMB M STR BHD
| Part | Includes | Mating Cycles | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Number of Ports | Connector Style | Connector Type | Mounting Type | Impedance | Shield Termination | Fastening Type | Housing Color | Mounting Feature | Frequency - Max [Max] | Contact Termination | Center Contact Material | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

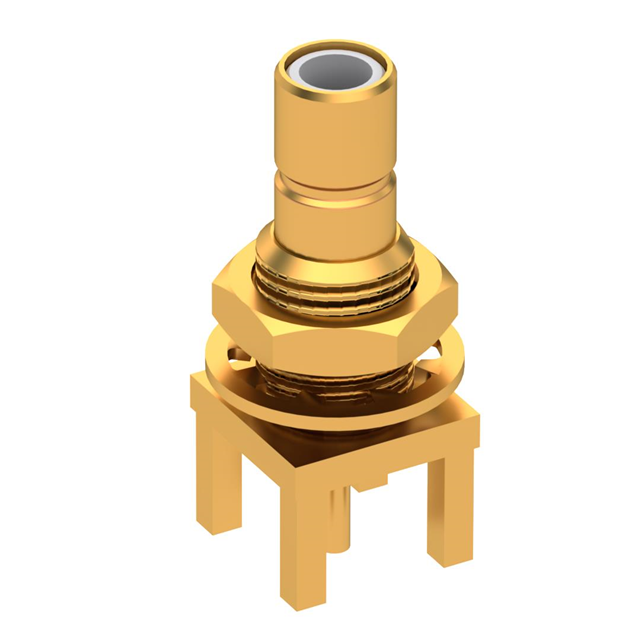

 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | 500 | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 1 | SMB | Jack Male Pin | Panel Mount Through Hole | 50 Ohms | Solder | Snap-On | Gold | Bulkhead - Front Side Nut | 4 GHz | Solder | Brass | |

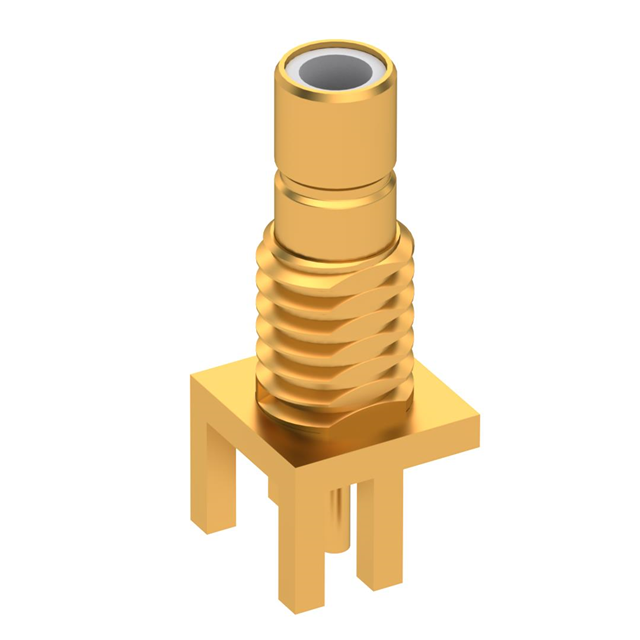

 Radiall USA, Inc. | 500 | Gold | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Gold | 1 | SMB | Jack Male Pin | Board Edge End Launch | 50 Ohms | Solder | Snap-On | Gold | 4 GHz | Solder | Brass | 0.3 dB |
