5976301 Series
Manufacturer: DIALIGHT
Beta
⌘K

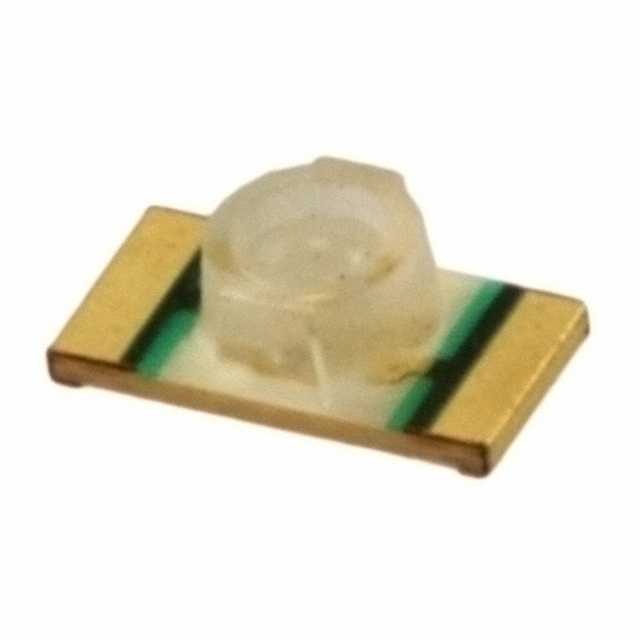

LED GREEN CLEAR 1206 SMD
| Part | Color | Configuration | Mounting Type | Viewing Angle | Supplier Device Package | Millicandela Rating | Lens Transparency | Package / Case | Height (Max) [z] | Lens Size [diameter] | Size / Dimension [y] | Size / Dimension [x] | Lens Style | Current - Test | Wavelength - Dominant | Wavelength - Peak | Lens Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | Green | Standard | Surface Mount Bottom Entry | 70 ° | 1206 | 411 mcd | Clear | 1206 (3216 Metric) | 1.1 mm | 1.6 mm | 1.6 mm | 3.2 mm | Round with Flat Top | 20 mA | 525 nm | 530 nm | Colorless | 3.3 V |
 DIALIGHT | Green | Standard | Surface Mount Bottom Entry | 70 ° | 1206 | 411 mcd | Clear | 1206 (3216 Metric) | 1.1 mm | 1.6 mm | 1.6 mm | 3.2 mm | Round with Flat Top | 20 mA | 525 nm | 530 nm | Colorless | 3.3 V |
