837-039 Series
Manufacturer: EDAC Inc.
Beta
⌘K

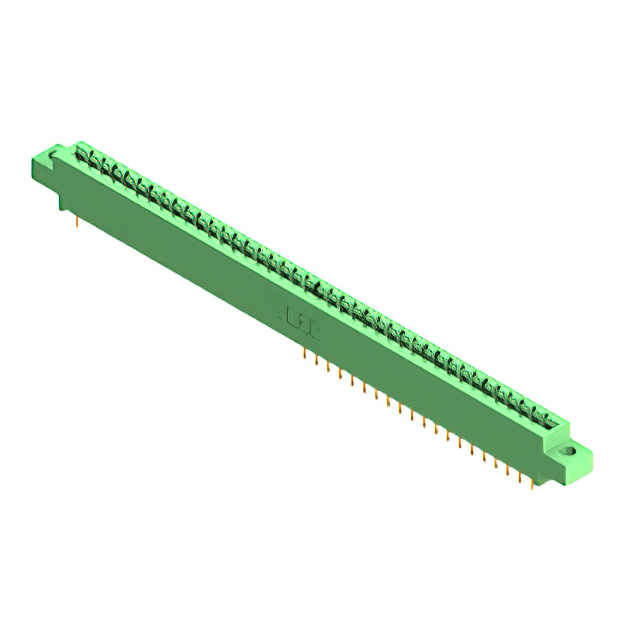

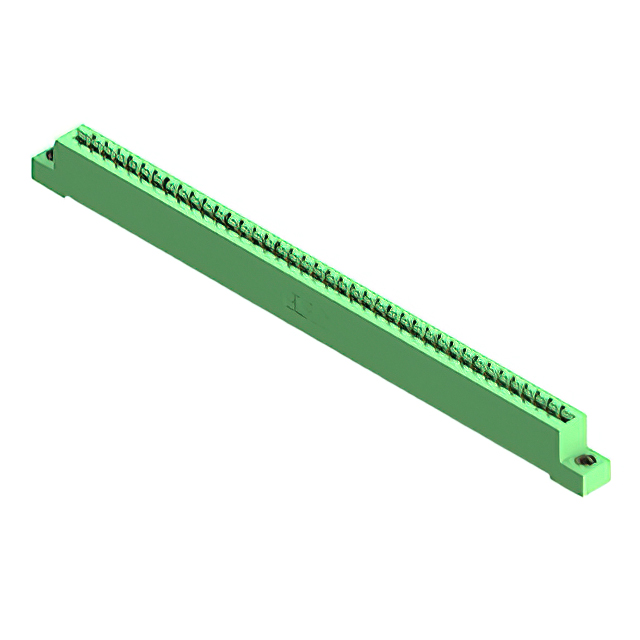

CONN EDGE SGL FMALE 39POS 0.156
| Part | Material - Insulation | Termination Rows | Gender | Contact Material | Pitch | Pitch | Color | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Number of Rows | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Right Angle Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Solder Eyelet(s) | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | 0.156 " | 3.96 mm | Wire Wrap | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Through Hole | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | 0.156 " | 3.96 mm | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Through Hole | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | M3 Threaded Insert Top Mount Opening | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | 0.156 " | 3.96 mm | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Right Angle Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Wire Wrap | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Through Hole |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Female | Copper Alloy | 3.96 mm | 0.156 in | Green | Gold | 0.156 " | 3.96 mm | Solder | 1 | Single | 125 °C | -40 C | 39 | 39 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Right Angle Through Hole |
