396-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 25POS 0.125
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Contact Material | Pitch | Pitch | Card Type | Gender | Contact Type | Mounting Type | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Color | Number of Rows | Flange Feature | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | 4-40 Threaded Insert Top Mount Opening | Solder | |||

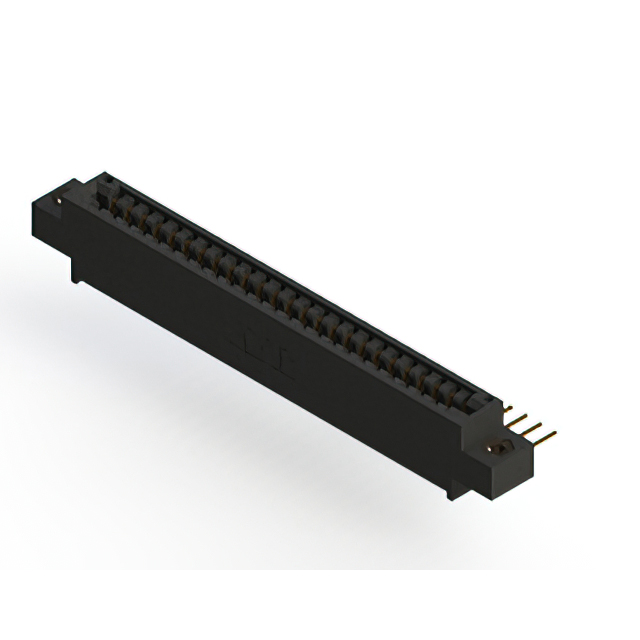

 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Right Angle Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | Floating Bobbin Top Mount Opening | Solder Wire Wrap | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | Solder | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | Side Mount Opening Unthreaded | Solder | 0.128 " | 3.25 mm | |

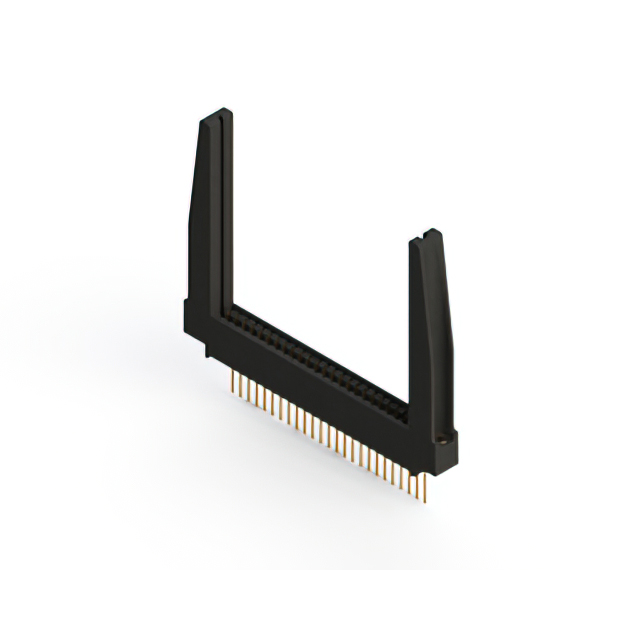

 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | Card Guides | ||

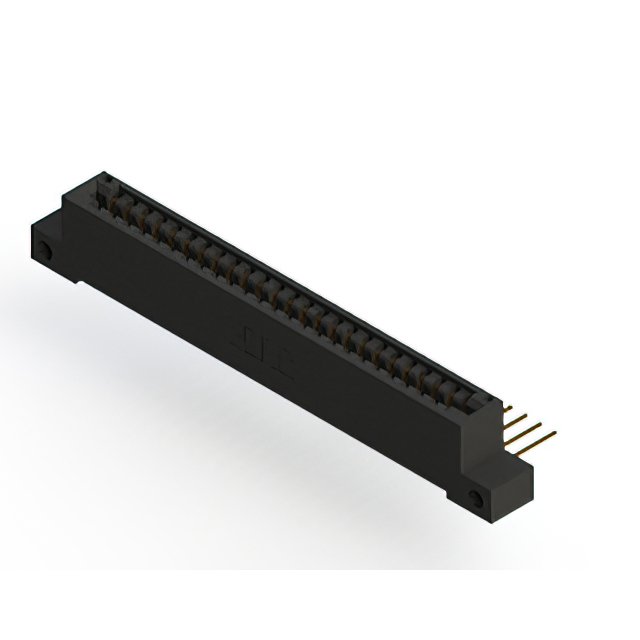

 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Right Angle Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | Flush Mount Side Opening Unthreaded | Solder Wire Wrap | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | 4-40 Threaded Insert Top Mount Opening | Solder | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | Wire Wrap | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Gold | Copper Alloy | 3.18 mm | 0.125 in | Non Specified - Single Edge | Female | Cantilever | Right Angle Through Hole | 25 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | -40 C | 105 ░C | 25 | Black | 1 | 4-40 Threaded Insert Top Mount Opening | Solder Wire Wrap |
