628-47W Series
Manufacturer: EDAC Inc.
Beta
⌘K

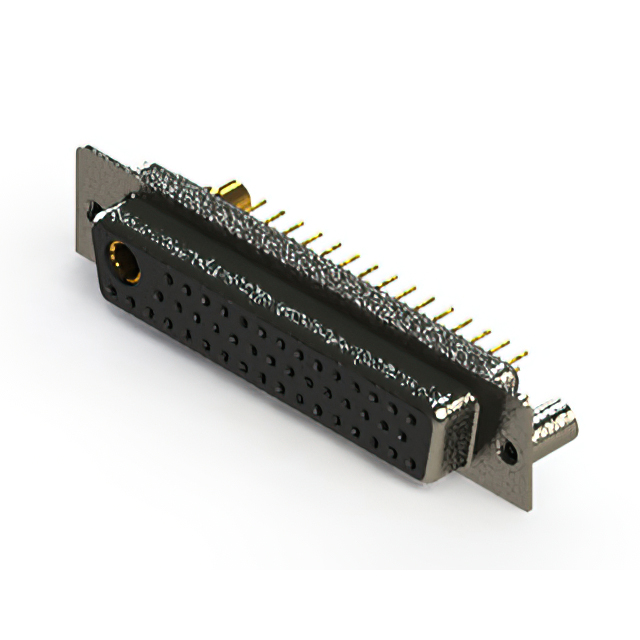

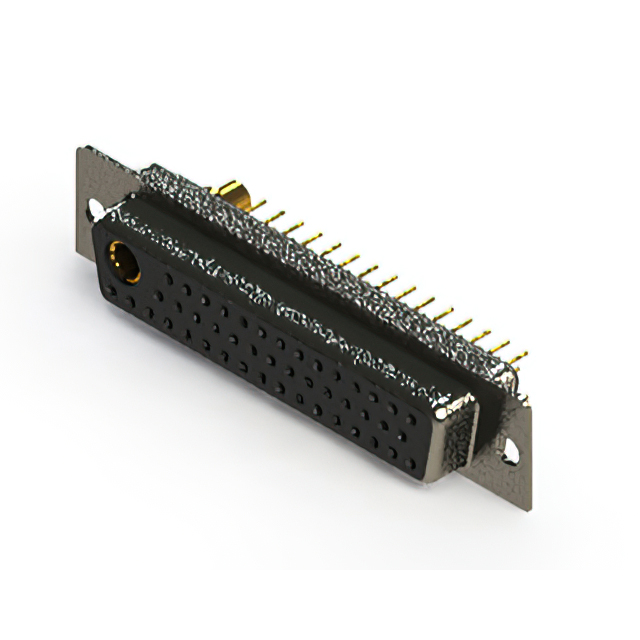

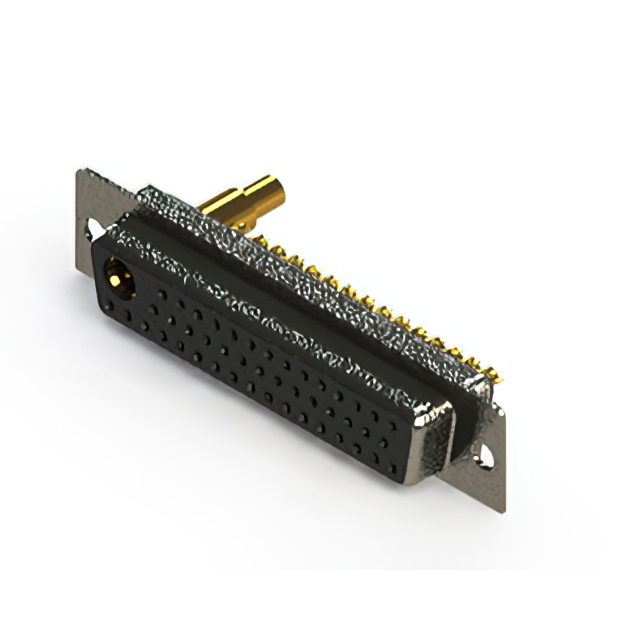

CONN D-SUB RCPT 47POS VERT SLDR
| Part | Color | Dielectric Material | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows [custom] | Mounting Type | Number of Positions | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Flange Feature [custom] | Flange Feature [custom] | Contact Finish | Current Rating (Amps) | Material Flammability Rating | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Termination | Shell Material, Finish | Flange Feature | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | 4-40 | 4-40 | Gold | 10A 5A | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | ||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Board Lock Shielded | Gold | 10A 5A | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | 4-40 | ||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Coax Signal | 3 | Free Hanging (In-Line) | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | |||||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Housing/Shell (Unthreaded) | 5 A 30 A | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | 20A 5A | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Board Side (M3) | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | 20A 5A | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | Housing/Shell (Unthreaded) | ||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | 20A 5A | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Housing/Shell (Unthreaded) | |||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | UL94 V-0 | Combo D-Sub | Solder | Housing/Shell (Unthreaded) | 5 A 40 A | Flash | ||||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | Board Side (M3) | 5 A 30 A | ||||
 EDAC Inc. | Black | Polyester Thermoplastic | Copper Alloy | 125 VDC | -55 C | 125 °C | Signal and Power | 3 | Through Hole | 47 | Receptacle Female Sockets | 47W1 D DD | 5 | Shielded | Gold | UL94 V-0 | Combo D-Sub | Solder | Board Side (4-40) | 5 A 40 A | Flash |
