OSTTS04 Series

Catalog

TERM BLOCK PLUG 4POS 90DEG 5MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Housing Material	Contact Material	Material Flammability Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Number of Levels	Type	Positions Per Level	Termination Style	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Pitch	Pitch	Color	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTS04715A	3.5 Lb-In	0.4 Nm	7 mm	6 mm	0.34 mm˛	2.5 mm˛	Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.197 in	5 mm	Green
On Shore Technology Inc. OSTTS04115D	1.7 Lb-In	0.2 Nm	7 mm	6 mm			Brass	Brass	UL94 V-0	4	-40 C	115 °C	300 V	1	Plug Female Sockets	4	Screw	16 AWG	28 AWG	Free Hanging (In-Line)			0.138 "	3.5 mm	Green	1.5 mm²

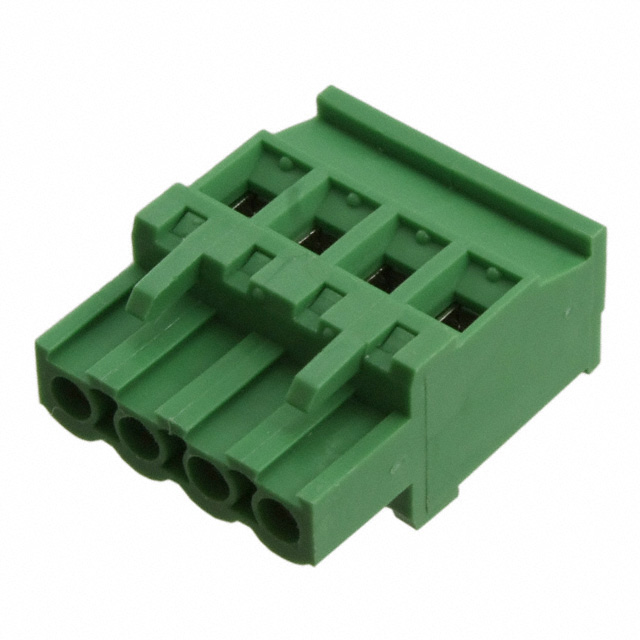

On Shore Technology Inc. OSTTS04515A	3.5 Lb-In	0.4 Nm	7 mm	6 mm	0.34 mm˛	2.5 mm˛	Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Green
On Shore Technology Inc. OSTTS04515C	3.5 Lb-In	0.4 Nm	7 mm	6 mm			Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Green
On Shore Technology Inc. OSTTS04715B	3.5 Lb-In	0.4 Nm	7 mm	6 mm	0.34 mm˛	2.5 mm˛	Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.197 in	5 mm	Green

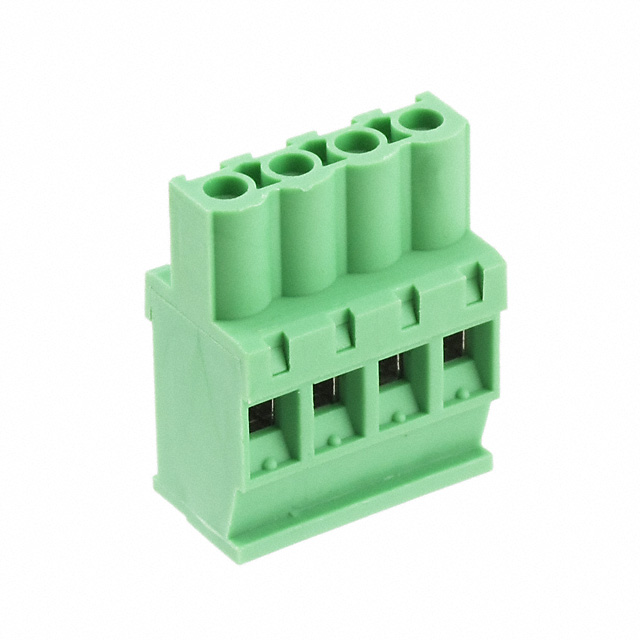

On Shore Technology Inc. OSTTS04515B	3.5 Lb-In	0.4 Nm	7 mm	6 mm	0.34 mm˛	2.5 mm˛	Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Green
On Shore Technology Inc. OSTTS04A15A	3.5 Lb-In	0.4 Nm	7 mm	6 mm			Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)			0.295 in	7.5 mm
On Shore Technology Inc. OSTTS04715D	3.5 Lb-In	0.4 Nm	7 mm	6 mm	0.34 mm˛	2.5 mm˛	Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.197 in	5 mm	Green
On Shore Technology Inc. OSTTS04115C	1.7 Lb-In	0.2 Nm	7 mm	6 mm			Brass	Brass	UL94 V-0	4	-40 C	115 °C	300 V	1	Plug Female Sockets	4	Screw	16 AWG	28 AWG	Free Hanging (In-Line)			0.138 "	3.5 mm	Green	1.5 mm²
On Shore Technology Inc. OSTTS04515D	3.5 Lb-In	0.4 Nm	7 mm	6 mm			Brass	Brass	UL94 V-0	4	-30 ░C	105 ░C	300 V	1	Plug Female Sockets	4	Screw	12 AWG	24 AWG	Free Hanging (In-Line)	0.34 mm²	2.5 mm²	0.2 in	5.08 mm	Green
