3203 Series

Catalog

CONN RING HOOK 14-16AWG #8 CRIMP

Part	Terminal Type	Stud/Tab Size	Thickness	Thickness	Contact Finish	Insulation	Termination	Features	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Contact Material	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Style	Tab Thickness	Tab Thickness

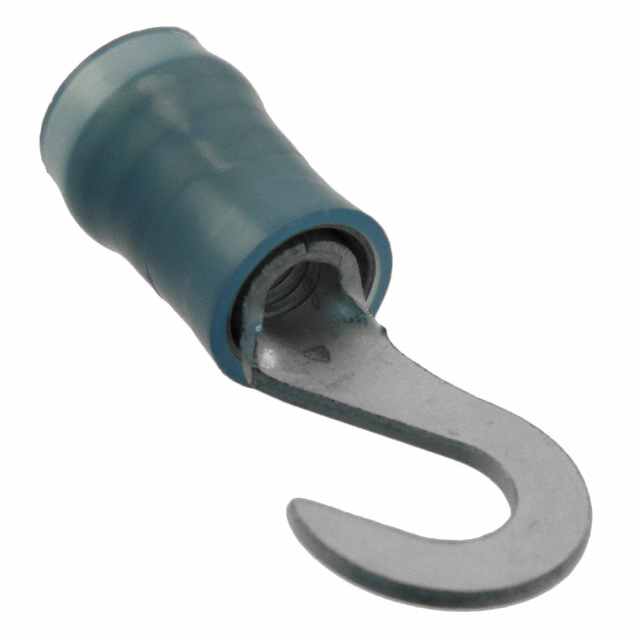

TE Connectivity Raychem Cable Protection 320306	Hook	8 Stud	0.031 in	0.79 mm	Tin	Insulated	Crimp	Serrated Termination	0.115 in 2.92 mm	0.17 " 4.32 mm	Copper	Blue	0.343 in	8.71 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	0.859 in	21.82 mm

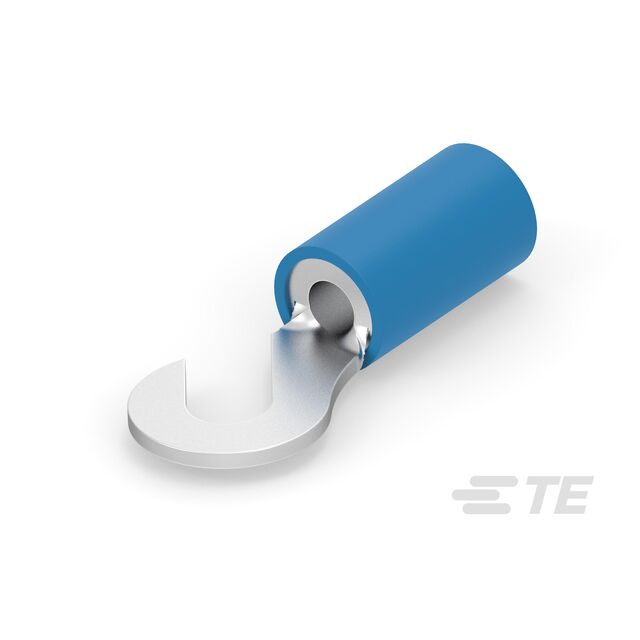

TE Connectivity Raychem Cable Protection 320381	Hook		0.031 in	0.79 mm	Tin	Insulated	Crimp	Serrated Termination	0.105 in	0.15 "	Copper	Blue	0.343 in	8.71 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	0.859 in	21.82 mm	6 Stud	3.81 mm	2.67 mm
TE Connectivity Raychem Cable Protection 320359	Rectangular Tongue				Tin	Non-Insulated	Crimp	Serrated Termination			Copper		0.375 in	9.53 mm	Free Hanging (In-Line)		1.219 "	30.96 mm	10 Stud			22 AWG	16 AWG	Two Stud Holes Hybrid	0.031 "	0.79 mm
