ASMC-PHB9 Series
Manufacturer: Broadcom Limited
Beta
⌘K

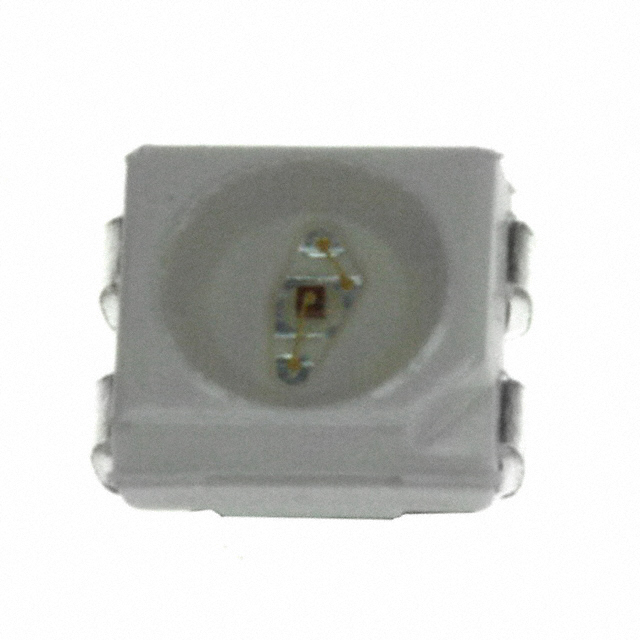

LED RED CLEAR 4PLCC SMD
| Part | Lens Size [diameter] | Lens Color | Supplier Device Package | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Wavelength - Dominant | Lens Transparency | Lens Style | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Current - Test | Color | Configuration | Height (Max) [z] | Package / Case | Wavelength - Peak | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 2.2 mm | Colorless | 4-PLCC | 120 ° | 2.8 mm | 3.2 mm | 617 nm | Clear | Round with Flat Top | 2.8 V | 1463 mcd | 50 mA | Red | Standard | 2.1 mm | 4-PLCC | 623 nm | Surface Mount |
