LB01 Series

Catalog

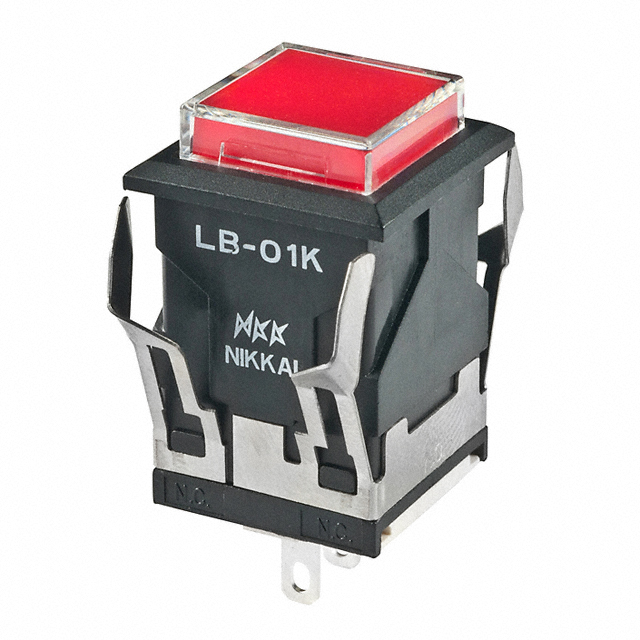

LED PANEL INDICATOR RED 24V

Part	Type	Lamp Color	Panel Cutout Shape	Current	Lens Style	Lens Transparency	Voltage	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ratings	Lens Color	Lens Size	Panel Cutout Dimensions
NKK Switches LB01GW01-5C24-JB	LED	Red	Square	13 mA	Square with Flat Top	Diffused	24 V	Quick Connect - 0.110" (2.8mm)	16.2 mm	0.64 in	0.64 in	16.2 mm	DC	Red	13.2 mm
NKK Switches LB01KW01-5C24-JB	LED	Red	Square	13 mA	Square with Flat Top	Diffused	24 V	Quick Connect - 0.110" (2.8mm)	16.2 mm	0.64 in	0.64 in	16.2 mm	DC	Red	13.2 mm
NKK Switches LB01KW01-05-GJ	Incandescent	Blue	Square	115 mA	Square with Flat Top	Diffused	5 V	Quick Connect - 0.110" (2.8mm)	16.2 mm	0.64 in	0.64 in	16.2 mm		Blue	13.2 mm
NKK Switches LB01KW01-5C12-JC	LED	Red	Round	26 mA	Square with Flat Top	Clear	12 V	Quick Connect - 0.110" (2.8mm)			0.64 in		AC	Red	13.2 mm	16.26 mm
NKK Switches LB01KW01-5C-JC	LED	Red	Round	30 mA	Square with Flat Top	Clear	1.9 V	Quick Connect - 0.110" (2.8mm)			0.64 in			Red	13.2 mm	16.26 mm
NKK Switches LB01KW01-05-FJ	Incandescent	Green	Square	115 mA	Square with Flat Top	Diffused	5 V	Quick Connect - 0.110" (2.8mm)	16.2 mm	0.64 in	0.64 in	16.2 mm		Green	13.2 mm
NKK Switches LB01GW01-12-FJ	Incandescent	Green	Round	60 mA	Square with Flat Top	Clear	12 V	Quick Connect - 0.110" (2.8mm)			0.64 in		AC	Green	13.2 mm	16.26 mm
NKK Switches LB01KW01-5F05-JF	LED	Green	Round	52 mA	Square with Flat Top	Clear	5 V	Quick Connect - 0.110" (2.8mm)			0.64 in		AC	Green	13.2 mm	16.26 mm
NKK Switches LB01KW01-12-JF	Incandescent	Green	Square	60 mA	Square with Flat Top	Diffused	12 V	Quick Connect - 0.110" (2.8mm)	16.2 mm	0.64 in	0.64 in	16.2 mm		Green	13.2 mm
NKK Switches LB01KW01-6F-JB	LED	Green	Round	30 mA	Square with Flat Top	Clear	3.3 V	Quick Connect - 0.110" (2.8mm)			0.64 in			White	13.2 mm	16.26 mm
