M1254 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

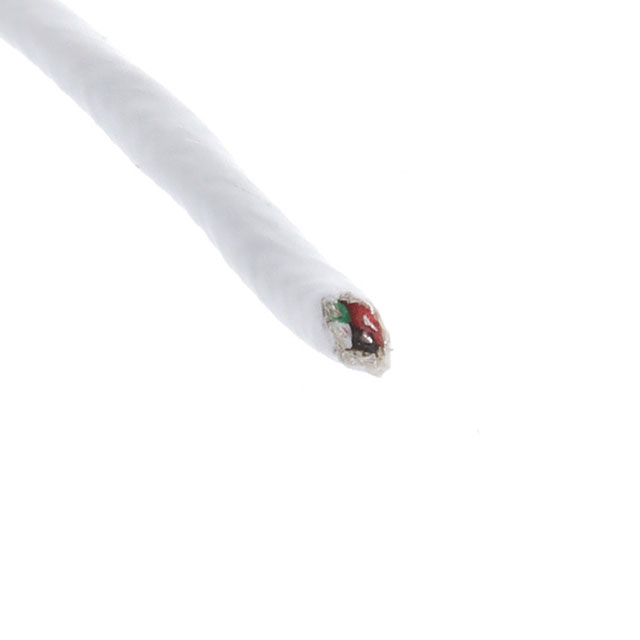

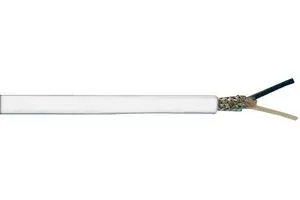

MULTICONDUCTOR CABLE, SHIELDED, 4 CONDUCTOR, 16 AWG, 1000 FT, 304.8 M
| Part | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Length | Length | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | Multi-Conductor | 0.0118 in | 0.3 mm | -55 °C | 200 °C | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | 0.24 in | 6.1 mm | 16 AWG | 85 % | 19 Strands | 29 AWG | Braid | 600 V | 1000 ft | 304.8 m | 4 | ||
 ALPHA WIRE | Copper Tinned | Multi-Conductor | 0.0118 in | 0.3 mm | -55 °C | 200 °C | Copper Silver Coated | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | 0.24 in | 6.1 mm | 16 AWG | 85 % | 19 Strands | 29 AWG | Braid | 600 V | 4 | 500 ' | 152.4 m |
