12SX Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER 1A 125VAC 28VDC 1.39N SCREW MOUNT SOLDER

Part	Mechanical Life	Termination Style	Differential Travel	Differential Travel	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Operating Force [Max]	Operating Force [Min]	Mounting Type	Voltage Rating - AC	Operating Position	Operating Position	Overtravel [custom]	Overtravel [custom]	Pretravel	Pretravel	Circuit	Current Rating (Amps)	Release Force	Operating Force

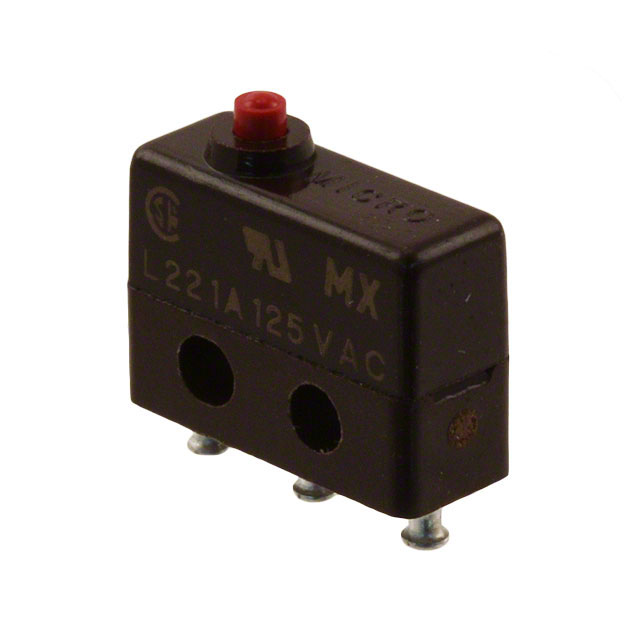

Honeywell Sensing and Productivity Solutions 12SX3-T	10000000 Cycles	Solder Turret	0.001 in	0.025 mm	Round (Pin Plunger)	28 V	-55 C	125 °C	On-Mom	141 gf	71 gf	Chassis Mount	125 V	8.13 mm	0.32 "	0.004 in	0.1 mm	0.02 in	0.5 mm	SPDT	1 A	28 gf

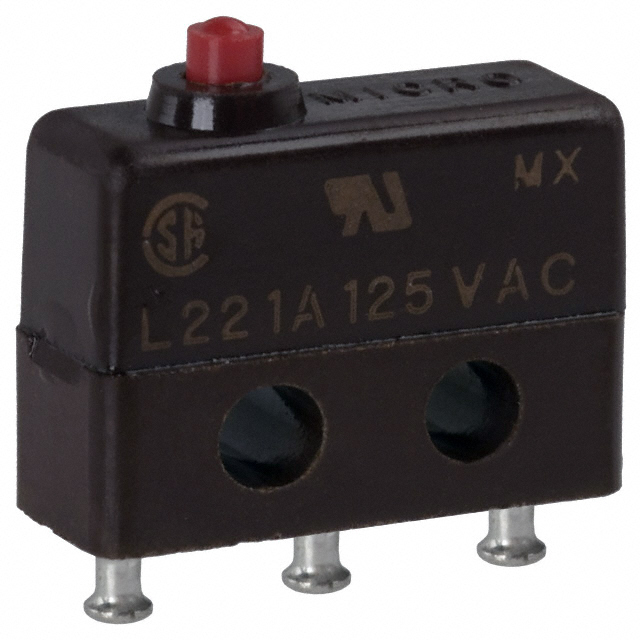

Honeywell Sensing and Productivity Solutions 12SX1-T	10000000 Cycles	Solder Turret			Round (Pin Plunger)	30 V	-55 C	125 °C	On-Mom			Chassis Mount	125 V	8.13 mm	0.32 "	0.004 in	0.1 mm	0.02 in	0.5 mm	SPDT	1 A	28 gf	141 gf
Honeywell Sensing and Productivity Solutions 12SX9-T	10000000 Cycles	Solder Turret			Round (Pin Plunger)	30 V	-55 C	125 °C	On-Mom			Chassis Mount	125 V	8.13 mm	0.32 "	0.01 "	0.25 mm	0.02 in	0.5 mm	SPDT	1 A	28 gf	141 gf
Honeywell Sensing and Productivity Solutions 12SX14-T	10000000 Cycles	Solder Turret	0.002 in	0.05 mm	Round (Pin Plunger)	30 V	-55 C	125 °C	On-Mom	141 gf	71 gf	Chassis Mount	125 V	8.13 mm	0.32 "	0.004 in	0.1 mm	0.02 in	0.5 mm	SPDT	1 A	28 gf
