G8020 Series

Catalog

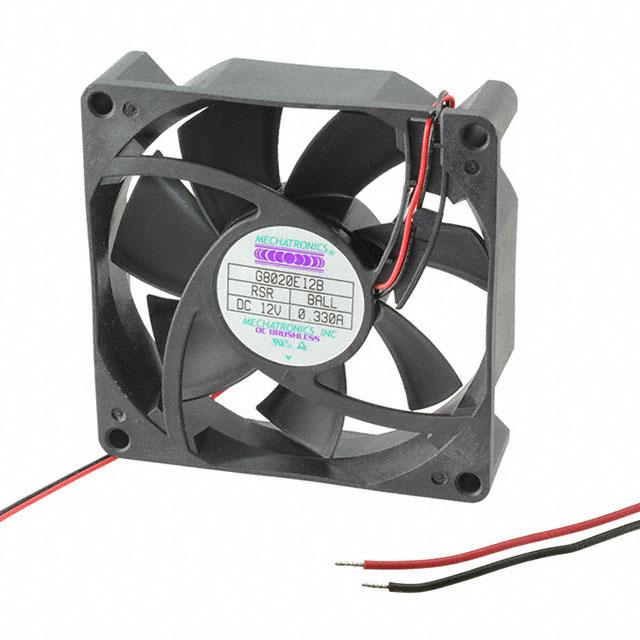

FAN AXIAL 80X20.8MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Noise	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Width [x]	Features	RPM	Termination	Fan Type	Air Flow	Air Flow	Bearing Type	Static Pressure

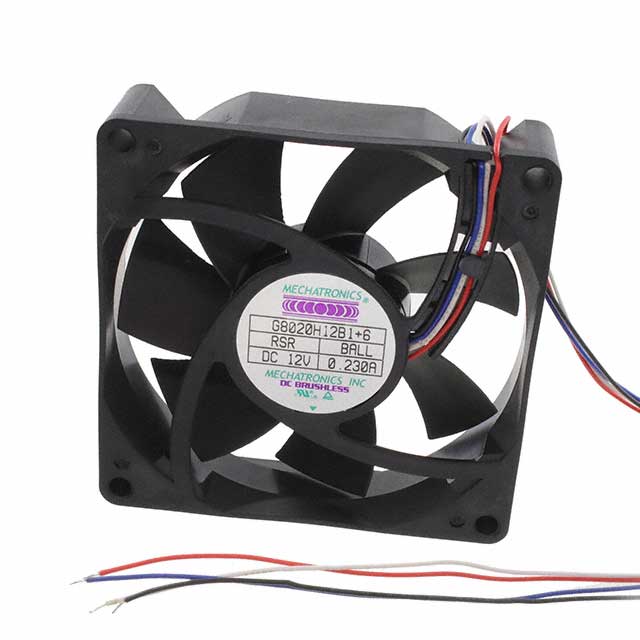

Mechatronics Fan Group G8020H12B1+6-RSR	Polybutylene Terephthalate (PBT)	0.23 A	42.3 Pa	0.17 in H2O	CE cUL TUV UL	33 dB(A)	80 mm	80 mm	12 VDC	20.8 mm	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	3500 RPM	4 Wire Leads	Tubeaxial	43 CFM	1.2 m³/min	Ball

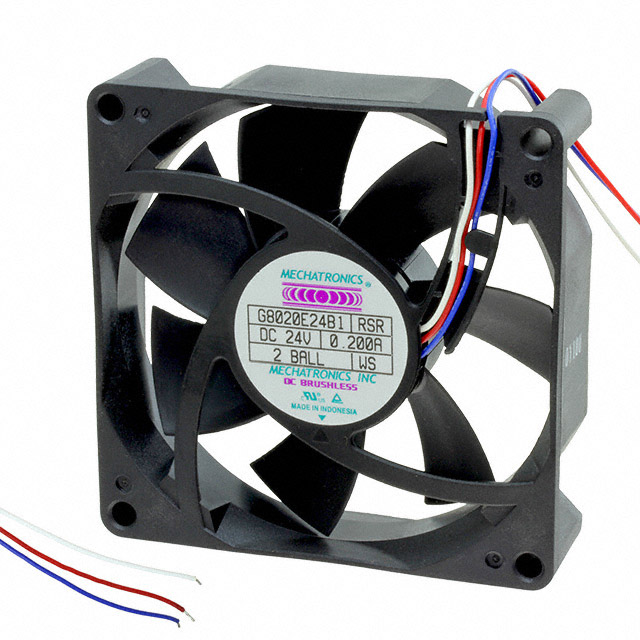

Mechatronics Fan Group G8020E24B1-RSR-WS	Polybutylene Terephthalate (PBT)	0.2 A	49.8 Pa	0.2 in H2O	CE cUL TUV UL	37 dB	80 mm	80 mm	24 VDC	20.8 mm	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	4000 RPM	4 Wire Leads	Tubeaxial	49 CFM	1.37 m³/min	Ball

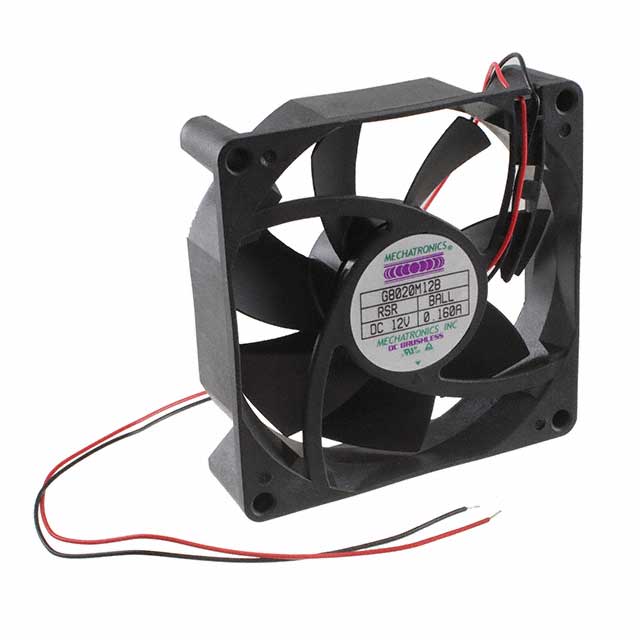

Mechatronics Fan Group G8020M12B-RSR	Polybutylene Terephthalate (PBT)		32.4 Pa	0.13 in H2O	CE cUL TUV UL	29 dB(A)	80 mm	80 mm	12 VDC	20.8 mm	Thermal Overload Protector (TOP)	3000 RPM	2 Wire Leads	Tubeaxial	38 CFM	1.06 mł/min	Ball
Mechatronics Fan Group G8020E24B-RSR	Polybutylene Terephthalate (PBT)	0.2 A	49.8 Pa	0.2 in H2O	CE cUL TUV UL	37 dB	80 mm	80 mm	24 VDC	20.8 mm	Thermal Overload Protector (TOP)	4000 RPM	2 Wire Leads	Tubeaxial	49 CFM	1.37 m³/min	Ball
Mechatronics Fan Group G8020S05B-RSR	Polybutylene Terephthalate (PBT)	0.2 A	14.9 Pa		CE cUL TUV UL	22 dB(A)	80 mm	80 mm	5 V	20.8 mm	Thermal Overload Protector (TOP)	2000 RPM	2 Wire Leads	Tubeaxial	24 CFM	0.672 mł/min	Ball	0.06 in H2O
Mechatronics Fan Group G8020L12B1-RSR	Polybutylene Terephthalate (PBT)	110 mA	24.9 Pa	0.1 in H2O	CE cUL TUV UL	25 dB(A)	80 mm	80 mm	12 VDC	20.8 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	2500 RPM	3 Wire Leads	Tubeaxial	31 CFM	0.868 mł/min	Ball
Mechatronics Fan Group G8020S12B-RSR	Polybutylene Terephthalate (PBT)	70 mA	14.9 Pa		CE cUL TUV UL	22 dB(A)	80 mm	80 mm	12 VDC	20.8 mm	Thermal Overload Protector (TOP)	2000 RPM	2 Wire Leads	Tubeaxial	24 CFM	0.672 mł/min	Ball	0.06 in H2O
Mechatronics Fan Group G8020E24B1-RSR-TTL	Polybutylene Terephthalate (PBT)	0.2 A	49.8 Pa	0.2 in H2O	CE cUL TUV UL	37 dB	80 mm	80 mm	24 VDC	20.8 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	4000 RPM	3 Wire Leads	Tubeaxial	49 CFM	1.37 m³/min	Ball
Mechatronics Fan Group G8020L24B-RSR	Polybutylene Terephthalate (PBT)	75 mA	24.9 Pa	0.1 in H2O	CE cUL TUV UL	25 dB(A)	80 mm	80 mm	24 VDC	20.8 mm	Thermal Overload Protector (TOP)	2500 RPM	2 Wire Leads	Tubeaxial			Ball
Mechatronics Fan Group G8020S12B1-RSR	Polybutylene Terephthalate (PBT)	70 mA	14.9 Pa		CE cUL TUV UL	22 dB(A)	80 mm	80 mm	12 VDC	20.8 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	2000 RPM	3 Wire Leads	Tubeaxial	24 CFM	0.672 mł/min	Ball	0.06 in H2O
