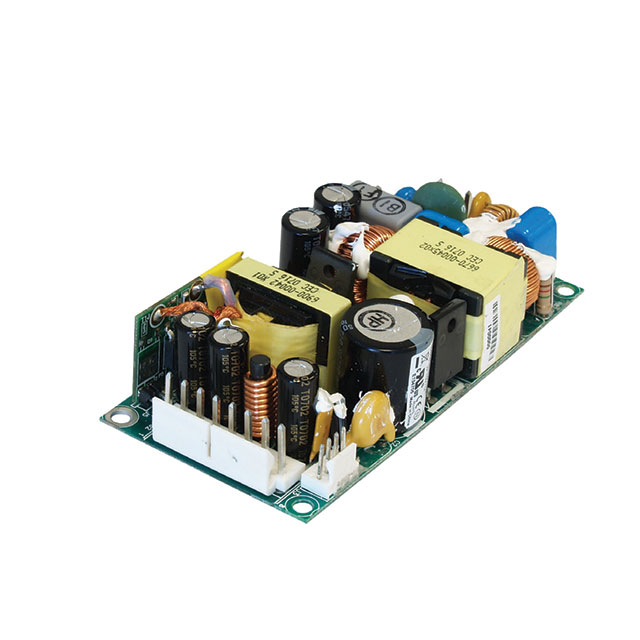

HD160 Series
Manufacturer: Digital Power Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
AC/DC CONVERTER 5V 100W
| Part | Minimum Load Required | Type | Standard Number | Mounting Type | Applications | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Voltage - Output 1 | Features | Voltage - Input (AC) Minimum | Voltage - Input (DC) Minimum | Voltage - Input (AC) Maximum | Voltage - Input (DC) Maximum | Number of Outputs | Power (Watts) | Current - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Digital Power Corporation | No | Open Frame | 60601-1 60950-1 | Chassis Mount | ITE (Commercial) Medical | CE CSA NEMKO | 70 °C | -20 °C | 4 in | 1.06 in | 2 in | 5 V | Adjustable Output PFC Standby Output Universal Input | 90 V | 170 V | 264 V | 370 V | 1 | 100 W | 20 A | 90 % |

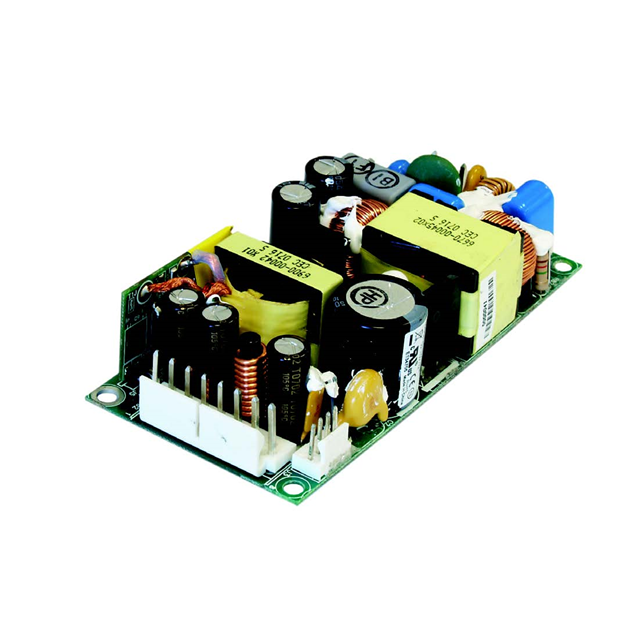

 Digital Power Corporation | No | Open Frame | 60601-1 60950-1 | Chassis Mount | ITE (Commercial) Medical | CE CSA NEMKO | 70 °C | -20 °C | 4 in | 1.06 in | 2 in | 12 V | Adjustable Output PFC Standby Output Universal Input | 90 V | 170 V | 264 V | 370 V | 1 | 160 W | 13.3 A | 90 % |
Digital Power Corporation | No | Open Frame | 60601-1 60950-1 | Chassis Mount | ITE (Commercial) Medical | CE CSA NEMKO | 70 °C | -20 °C | 4 in | 1.06 in | 2 in | 48 V | Adjustable Output PFC Standby Output Universal Input | 90 V | 170 V | 264 V | 370 V | 1 | 160 W | 3.33 A | 90 % |
