1761199 Series

Catalog

CONN MOD JACK 8P R/A SHLD

Part	Shielding	Housing Material	LED Color	Mounting Type	Orientation	Contact Finish	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions/Contacts	Termination	Features
TE Connectivity Raychem Cable Protection 5-1761199-3	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	8 Positions	Solder	Board Lock Keyed
TE Connectivity Raychem Cable Protection 1-1761199-1	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	4 Contacts	Solder	Board Lock Keyed
TE Connectivity Raychem Cable Protection 1-1761199-2	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	6 Contacts	Solder	Board Lock Keyed
TE Connectivity Raychem Cable Protection 4-1761199-1	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	4 Contacts	Solder	Board Lock Keyed
TE Connectivity Raychem Cable Protection 5-1761199-1	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	4 Contacts	Solder	Board Lock Keyed

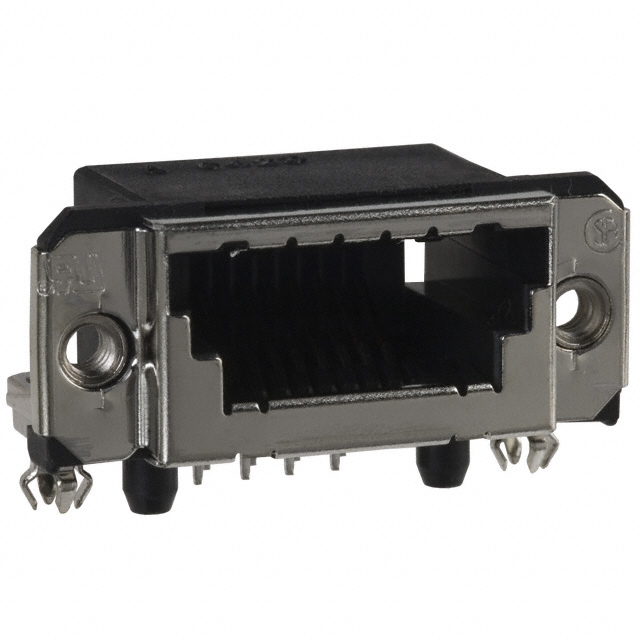

TE Connectivity Raychem Cable Protection 1-1761199-3	Shielded	Polyester	Does Not Contain LED	Through Hole	90 °	Gold	1	-20 C	80 C	Phosphor Bronze	50 µin	1.27 µm	Jack SDL	1	8 Positions	Solder	Board Lock Keyed
