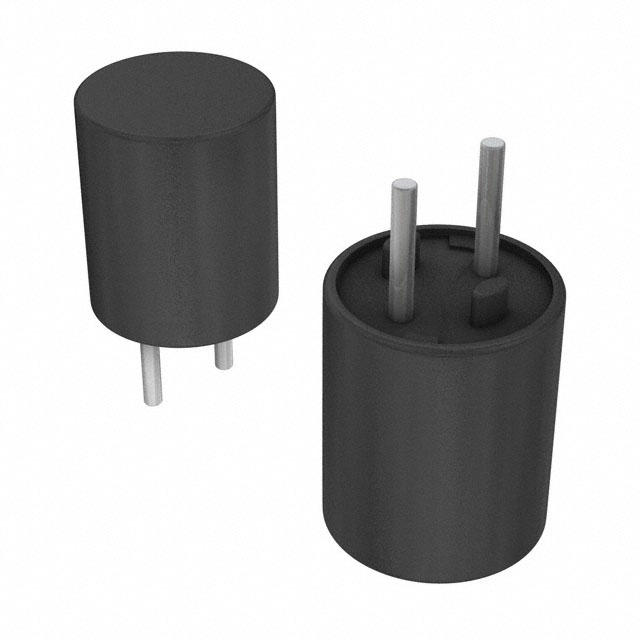

ELC-10 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 10UH 3.9A 26 MOHM TH

Part	Type	Shielding	Package / Case	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Inductance Frequency - Test	DC Resistance (DCR)	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ELC-10D100E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	10 µH	0.512 in	13 mm	3.9 A	10 kHz	26 mOhm	20 %
Panasonic Industrial Automation Sales ELC-10D391E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	390 µH	0.512 in	13 mm	800 mA	10 kHz	400 mOhm	10 %
Panasonic Industrial Automation Sales ELC-10E682L	Wirewound	Shielded	Radial Vertical Cylinder	Through Hole				0.394 in	10 mm	110 mA	10 kHz	11.9 Ohm	10 %	13 mm	0.512 "
Panasonic Industrial Automation Sales ELC-10D681E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	680 µH	0.512 in	13 mm	0.64 A	10 kHz	660 mOhm	10 %
Panasonic Industrial Automation Sales ELC-10D332E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	3300 µH	0.512 in	13 mm	0.28 A	10 kHz	3.2 Ohm	10 %
Panasonic Industrial Automation Sales ELC-10D680E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	68 µH	0.512 in	13 mm	2.1 A	10 kHz	75 mOhm	10 %
Panasonic Industrial Automation Sales ELC-10D2R2E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	2.2 µH	0.512 in	13 mm	5.9 A	10 kHz	14 mOhm	20 %
Panasonic Industrial Automation Sales ELC-10D181E	Wirewound	Unshielded	Radial Vertical Cylinder	Through Hole	15 mm	0.591 "	180 µH	0.512 in	13 mm	1.3 A	10 kHz	180 mOhm	10 %
Panasonic Industrial Automation Sales ELC-10E332L	Wirewound	Shielded	Radial Vertical Cylinder	Through Hole			3300 µH	0.394 in	10 mm	0.17 A	10 kHz	5.9 Ohm	10 %	13 mm	0.512 "
Panasonic Industrial Automation Sales ELC-10E152L	Wirewound	Shielded	Radial Vertical Cylinder	Through Hole			1.5 mH	0.394 in	10 mm	0.26 A	10 kHz	2.8 Ohm	10 %	13 mm	0.512 "
