5494C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

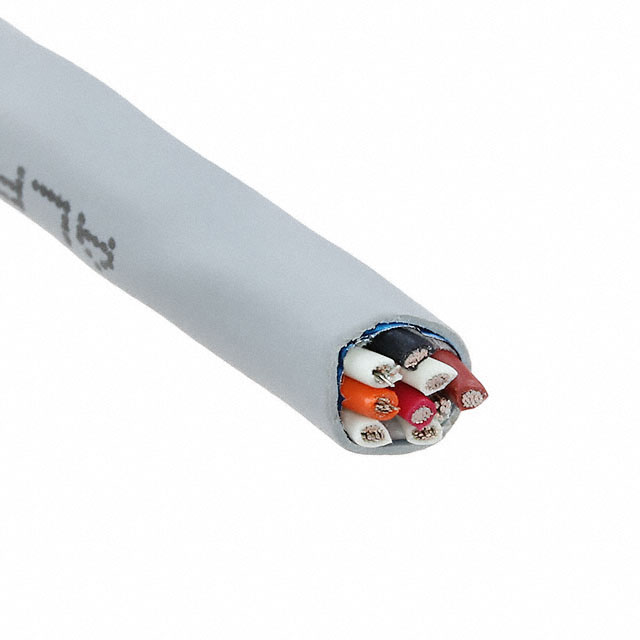

MULTI-PAIR 8CON 24AWG SLATE 100'
| Part | Shield Coverage | Shield Material | Number of Conductors | Voltage | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Cable Type | Jacket (Insulation) Material | Usage | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 8 | 300 VDC | 100 ft | 30.5 m | 6.27 mm | 0.247 in | Biological Compatibility | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | Communication Control | ISO 10993 UL Style 2464 | 7 | 32 AWG | Slate | Copper Tinned | 24 AWG | 0.813 mm | 0.032 in | ||
 ALPHA WIRE | 100 % | Aluminum | 8 | 300 VDC | 6.27 mm | 0.247 in | Biological Compatibility | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Foil | Multi-Pair | Poly-Vinyl Chloride (PVC) | Communication Control | ISO 10993 UL Style 2464 | 7 | 32 AWG | Slate | Copper Tinned | 24 AWG | 0.813 mm | 0.032 in | 304.8 m | 1000 ft |
