1103639 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

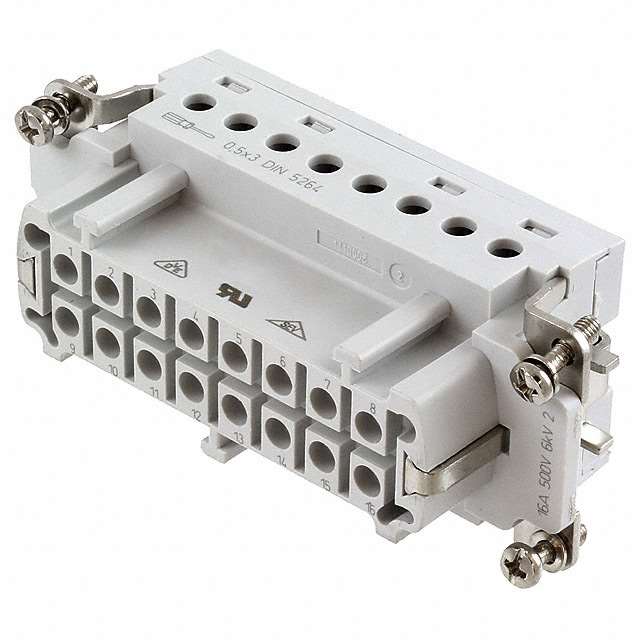

CONNECTOR: HDC; CONTACT INSERT; FEMALE; HE; PIN: 16; 16A; 500V; 16+PE
| Part | Color | Housing Material | Material Flammability Rating | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Size | Gender | Termination Style | Current Rating (Amps) | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gray | Glass Filled Polycarbonate (PC) | UL94 V-0 | Silver | 16+Ground | 125 °C | -40 C | 6 | Female | Screw | 16 A | Insert | 400 V |
 TE Connectivity AMP Connectors | Gray | Glass Filled Polycarbonate (PC) | UL94 V-0 | Silver | 16+Ground | 125 °C | -40 C | 6 | Female | Screw | 16 A | Insert | 400 V |
