ACDA04 Series

Catalog

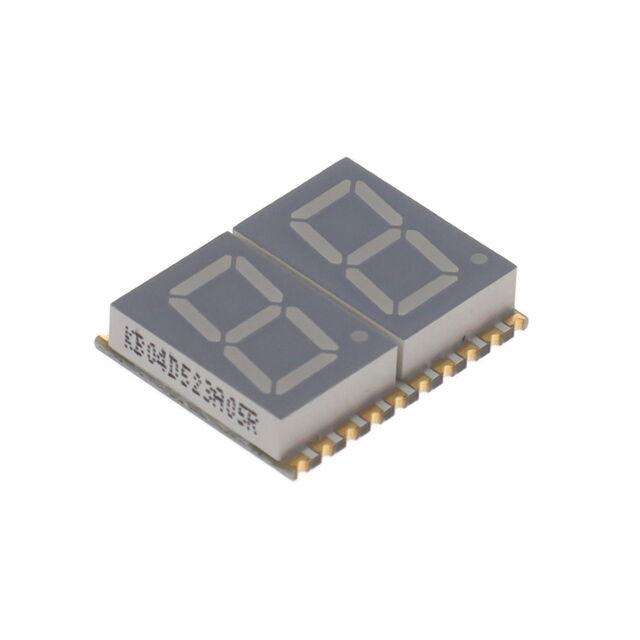

DISPLAY 7-SEG 0.4" DBL YLW 20SMD

Part	Common Pin	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Display Type	Color	Current - Test	Number of Characters	Millicandela Rating	Power Dissipation (Max) [Max]
Kingbright ACDA04-41SYKWA-F01	Common Anode	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	20-SMD No Lead	10.16 mm	0.4 in	2 V	590 nm	7-Segment	Yellow	20 mA	2	35 mcd	75 mw
Kingbright ACDA04-41CGKWA-F01	Common Anode	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	20-SMD No Lead	10.16 mm	0.4 in	2.1 V		7-Segment	Green	20 mA	2	11 mcd	75 mw
Kingbright ACDA04-41SURKWA-F01	Common Anode	0.728 in	0.148 in	18.5 mm	0.512 in	13 mm	3.75 mm	20-SMD No Lead	10.16 mm	0.4 in	1.95 V	650 nm	7-Segment	Red	20 mA	2	27 mcd	75 mw
