TAS5424 Series

Catalog

IC AMP CLASS D QUAD 150W 44HSSOP

Part	Supplier Device Package	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Qualification	Max Output Power x Channels @ Load	Board Type	Max Output Power x Channels @ Load [custom]	Supplied Contents	Utilized IC / Part
Texas Instruments TAS5424BTDKERQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	24 V	6 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection	AEC-Q100	2 Ohm 2 Channels 4 Ohm 4 Channels 79 W 150 W
Texas Instruments TAS5424TDKDRQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W
Texas Instruments TAS5424BTDKDRQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	24 V	6 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection	AEC-Q100	2 Ohm 2 Channels 4 Ohm 4 Channels 79 W 150 W
Texas Instruments TAS5424ATDKDRMQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W

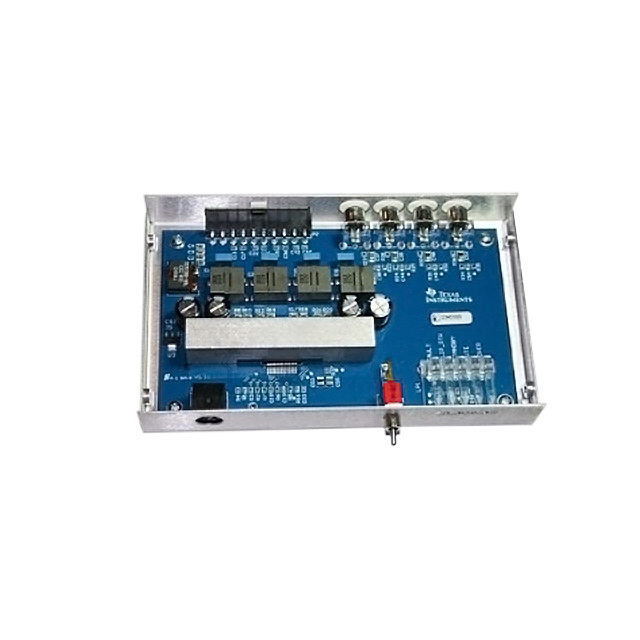

Texas Instruments TAS5424CQ1DKEEVM					4-Channel (Quad)						24 V	6 V			50 W	Fully Populated	4	Board(s) Cable(s)	TAS5424C-Q1

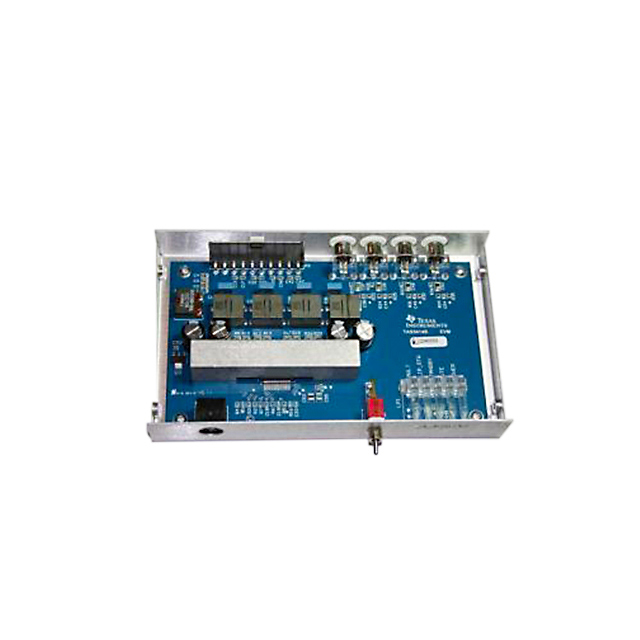

Texas Instruments TAS5424BQ1DKDEVM					4-Channel (Quad)						22 V	8 V			2 Ohm 2 Channels 4 Ohm 4 Channels 79 W 150 W	Fully Populated		Board(s)	TAS5424B
Texas Instruments TAS5424ATDKDRQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W
Texas Instruments TAS5424TDKDQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W
Texas Instruments TAS5424ATDKDQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W
Texas Instruments TAS5424ATDKDMQ1	44-HSSOP	Automotive	105 °C	-40 °C	4-Channel (Quad)	Surface Mount	44-BSSOP Exposed Pad	11 mm	0.433 in	Class D	22 V	8 V	Depop Differential Inputs I2C Mute Short-Circuit and Thermal Protection Shutdown	AEC-Q100	58 W 116 W
