051 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Weight	Weight	Color	Height [z]	Height [z]	Material	Features	Container Type	Ratings	Thickness	Thickness	Material Flammability Rating	Design	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)

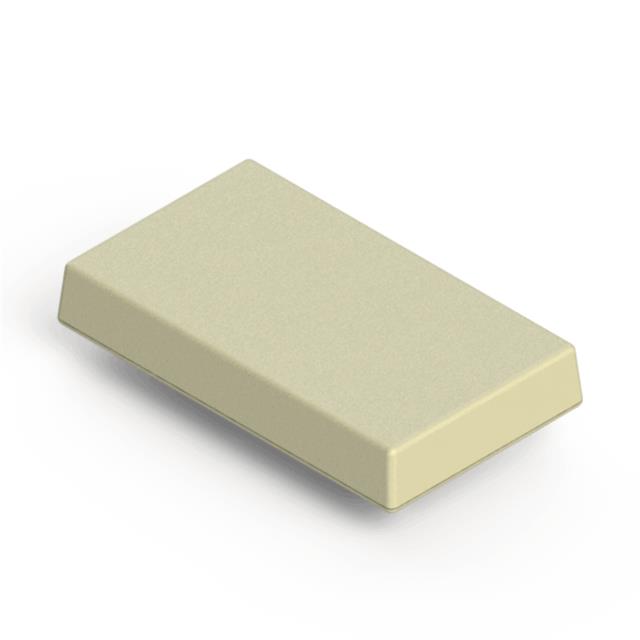

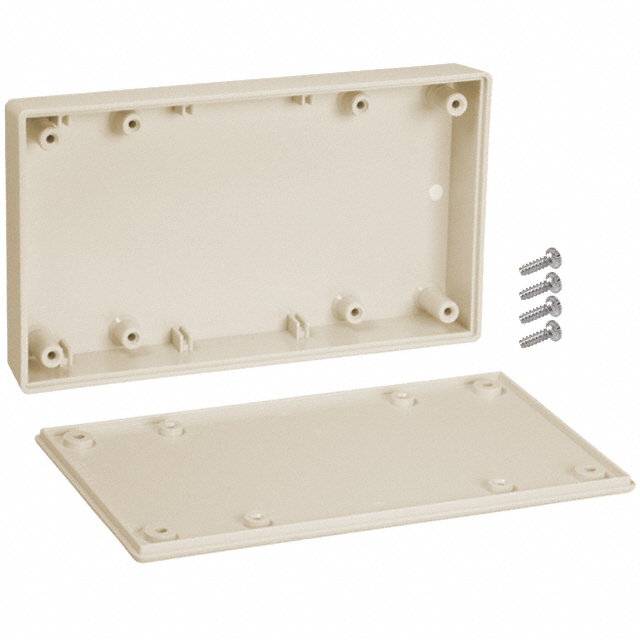

Serpac 051,AL	0.187 lb	84.82 g	Almond	22.86 mm	0.9 in	ABS Plastic	PCB Supports	Box	IP40 NEMA 1	2.54 mm	0.1 in	UL94 HB	Cover Included Hand Held	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²
Serpac 051,BK	0.187 lb	84.82 g	Black	22.86 mm	0.9 in	ABS Plastic	PCB Supports	Box	IP40 NEMA 1	2.54 mm	0.1 in	UL94 HB	Cover Included Hand Held	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

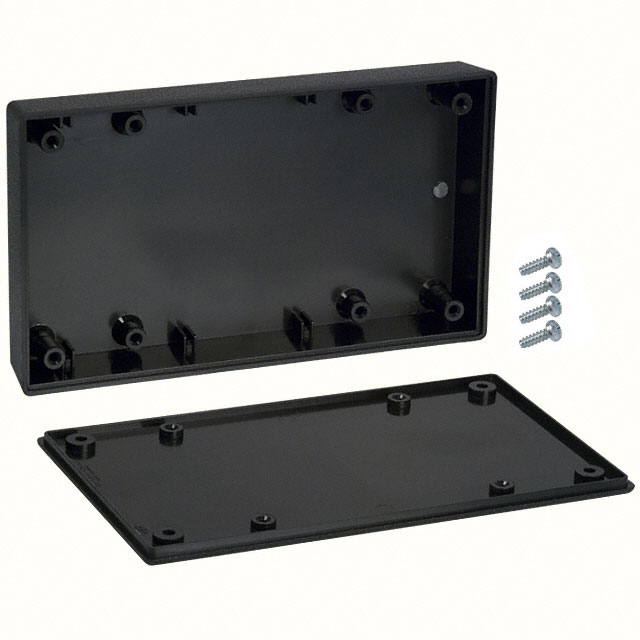

Serpac 051,BK-BULK	0.187 lb	84.82 g	Black	22.86 mm	0.9 in	ABS Plastic	PCB Supports	Box	IP40 NEMA 1	2.54 mm	0.1 in	UL94 HB	Cover Included Hand Held	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²

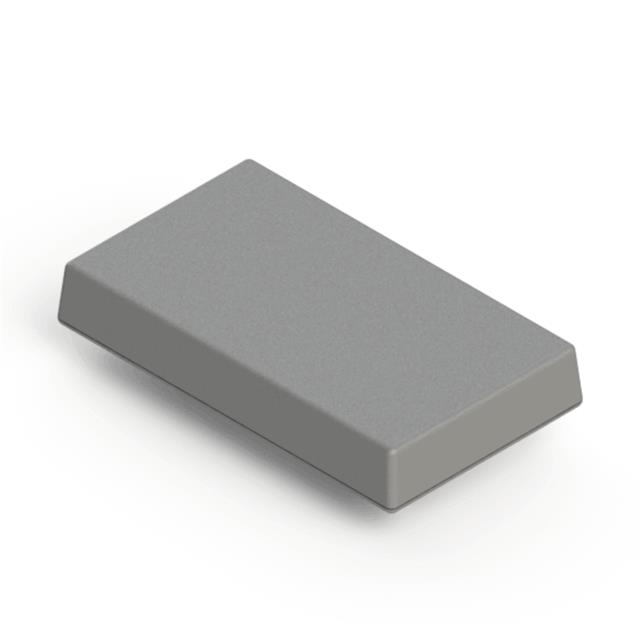

Serpac 051,GY	0.187 lb	84.82 g	Gray	22.86 mm	0.9 in	ABS Plastic	PCB Supports	Box	IP40 NEMA 1	2.54 mm	0.1 in	UL94 HB	Cover Included Hand Held	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²
