M80-876 Series
Manufacturer: Harwin Inc.
Beta
⌘K
HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,LATCH ROHS COMPLIANT: NO
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Termination | Style | Connector Type | Current Rating (Amps) | Contact Finish - Mating | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Fastening Type | Number of Rows | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Features | Voltage Rating | Contact Material | Pitch - Mating | Pitch - Mating | Number of Positions | Shrouding | Insulation Material | Contact Type | Contact Shape | Mounting Type | Material Flammability Rating | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 118.1 µin | 3 µm | Solder | Board to Board Cable | Header | 2.2 A | Gold | All | 0.156 in | 3.96 mm | -55 C | 125 °C | 0.118 in | 3 mm | Tin-Lead | Latch Lock | 1 | 29.5 µin | 0.75 µm | Strain Relief Clips | 120 VDC | Phosphor Bronze | 0.079 " | 2 mm | 7 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Circular | Right Angle Through Hole | UL94 V-0 | Black |

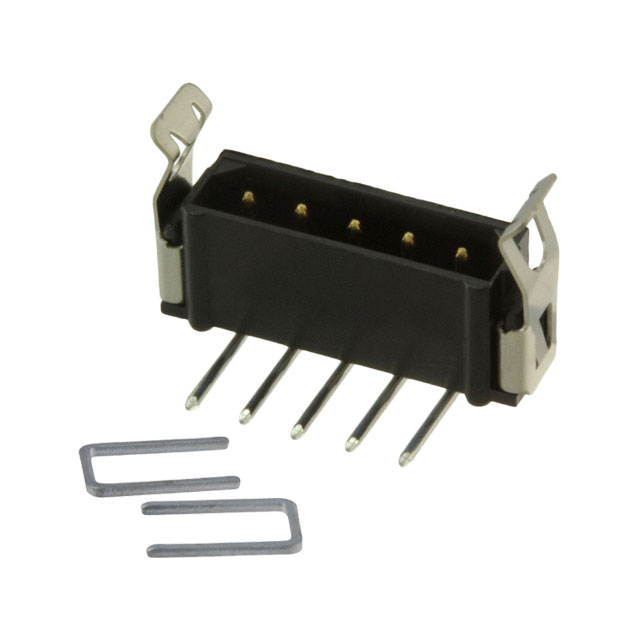

 Harwin Inc. | 118.1 µin | 3 µm | Solder | Board to Board Cable | Header | 2.2 A | Gold | All | 0.156 in | 3.96 mm | -55 C | 125 °C | 0.118 in | 3 mm | Tin-Lead | Latch Lock | 1 | 29.5 µin | 0.75 µm | Strain Relief Clips | 120 VDC | Phosphor Bronze | 0.079 " | 2 mm | 5 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Circular | Right Angle Through Hole | UL94 V-0 | Black |

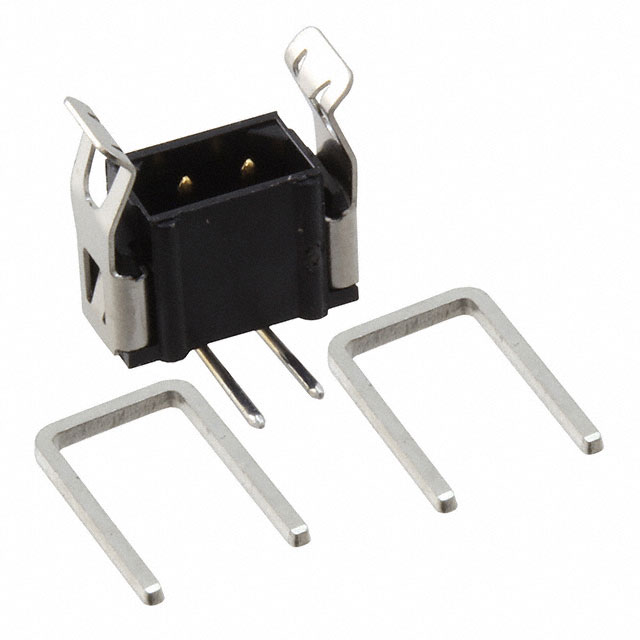

 Harwin Inc. | 118.1 µin | 3 µm | Solder | Board to Board Cable | Header | 2.2 A | Gold | All | 0.156 in | 3.96 mm | -55 C | 125 °C | 0.118 in | 3 mm | Tin-Lead | Latch Lock | 1 | 29.5 µin | 0.75 µm | Strain Relief Clips | 120 VDC | Phosphor Bronze | 0.079 " | 2 mm | 2 | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Circular | Right Angle Through Hole | UL94 V-0 | Black |
Harwin Inc. | 118.1 µin | 3 µm | Solder | Board to Board Cable | Header | 2.2 A | Gold | All | 0.156 in | 3.96 mm | -55 C | 125 °C | 0.118 in | 3 mm | Tin-Lead | Latch Lock | 1 | 29.5 µin | 0.75 µm | Strain Relief Clips | 120 VDC | Phosphor Bronze | 0.079 " | 2 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Circular | Right Angle Through Hole | UL94 V-0 | Black |
