2467C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

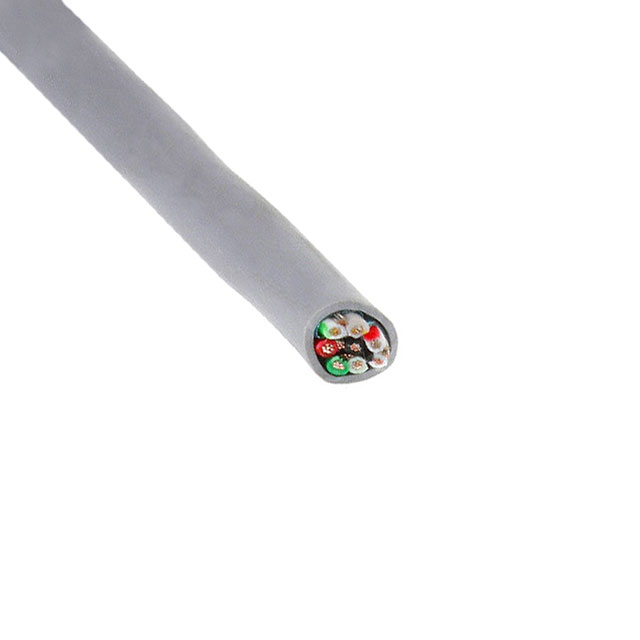

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 4 PAIR, 20 AWG, 0.56 MM², 1000 FT, 304.8 M
| Part | Shield Coverage | Shield Material | Shield Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Conductor Insulation | Jacket Color | Features | Cable Type | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | Communication Control | 8.64 mm | 0.34 " | 8 | Poly-Vinyl Chloride (PVC) | 0.03 in | 0.762 mm | 20 AWG | 304.8 m | 1000 ft | Polypropylene (PP) | Slate | Drain Wire | Multi-Pair | Copper Tinned | 300 VDC | 28 AWG | 7 |
