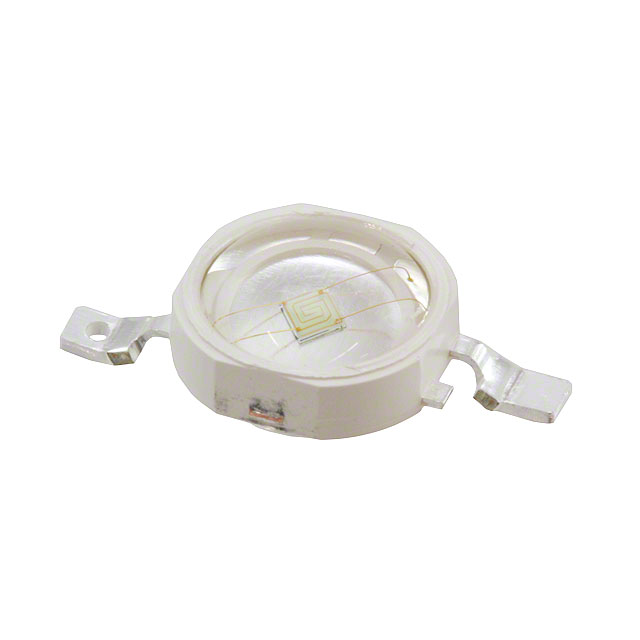

ASMT-AG00 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED GREEN 525NM 1W 2SMD
| Part | Thermal Resistance of Package | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Viewing Angle | Wavelength [Max] | Wavelength [Min] | Wavelength | Supplier Device Package | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test | Temperature - Test | Size / Dimension [diameter] | Size / Dimension [diameter] | Current - Test | Current - Max [Max] | Mounting Type | Package / Case | Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 10 °C/W | 4.2 mm | 0.165 " | 140 ° | 535 nm | 515 nm | 525 nm | 2-SMD | 70 lm | 63 lm/W | 25 °C | 0.315 in | 8 mm | 350 mA | 500 mA | Surface Mount | 2-SMD Gull Wing Exposed Pad | Green | 3.2 V |
