C3DDS-1 Series

Catalog

IDC CABLE - CKR10S/AE10G/CKR10S

Part	Features	Contact Finish	Shielding	Number of Positions	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Usage	Cable Termination	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Color	Length	Length [x]	Length [x]

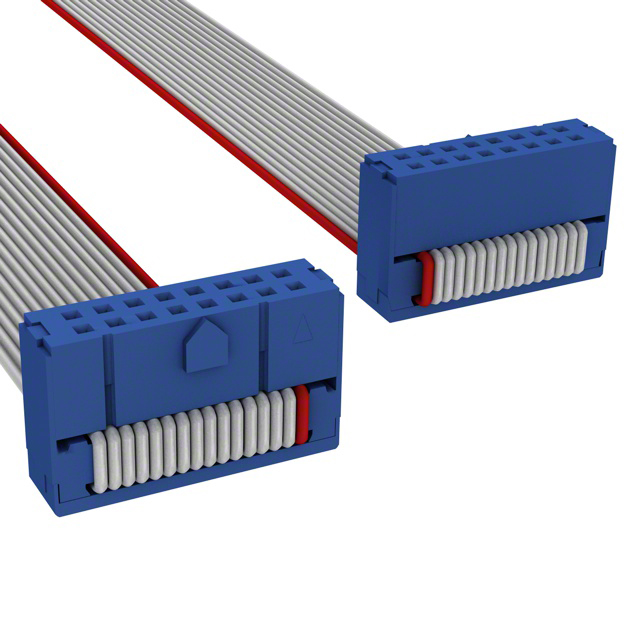

CW Industries C3DDS-1036G	Polarizing Key Strain Relief	Tin	Unshielded	10	91.44 cm	3 ft	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm
CW Industries C3DDS-1636G	Polarizing Key Strain Relief	Tin	Unshielded	16	91.44 cm	3 ft	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm

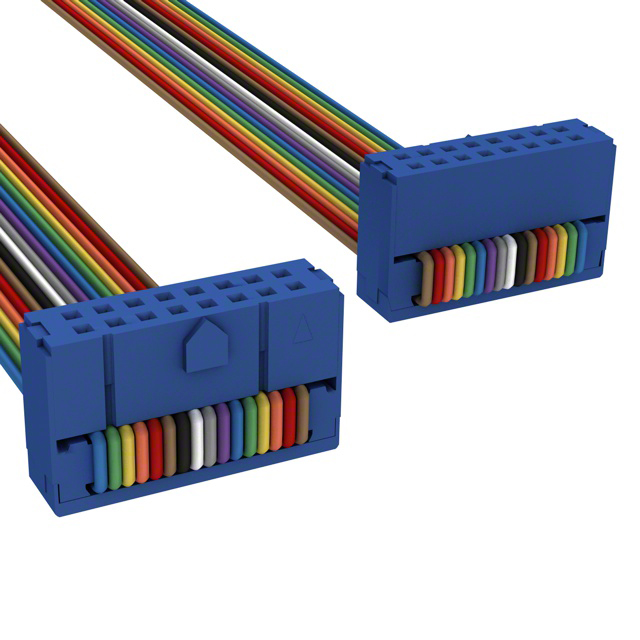

CW Industries C3DDS-1636M	Polarizing Key Strain Relief	Tin	Unshielded	16	91.44 cm	3 ft	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm	Multiple Ribbon
CW Industries C3DDS-1606G	Polarizing Key Strain Relief	Tin	Unshielded	16	152.4 mm	0.5 '	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm		6 "
CW Industries C3DDS-1606M	Polarizing Key Strain Relief	Tin	Unshielded	16	152.4 mm	0.5 '	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm	Multiple Ribbon	6 "
CW Industries C3DDS-1406M	Polarizing Key Strain Relief	Tin	Unshielded	14	152.4 mm	0.5 '	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm	Multiple Ribbon	6 "
CW Industries C3DDS-1418G	Polarizing Key Strain Relief	Tin	Unshielded	14			0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm			457.2 mm	1.5 ft
CW Industries C3DDS-1618G	Polarizing Key Strain Relief	Tin	Unshielded	16			0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm			457.2 mm	1.5 ft
CW Industries C3DDS-1006M	Polarizing Key Strain Relief	Tin	Unshielded	10	152.4 mm	0.5 '	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm	Multiple Ribbon	6 "
CW Industries C3DDS-1006G	Polarizing Key Strain Relief	Tin	Unshielded	10	152.4 mm	0.5 '	0.1 in	2.54 mm	2.54 µm	100 µin	Socket to Socket	Board In	IDC	2	0.05 in	1.27 mm		6 "
