PPPC102 Series

Catalog

CONN HDR 20POS 0.1 GOLD PCB

Part	Insulation Material	Contact Finish Thickness - Post	Contact Material	Contact Shape	Number of Positions	Insulation Color	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Mounting Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]

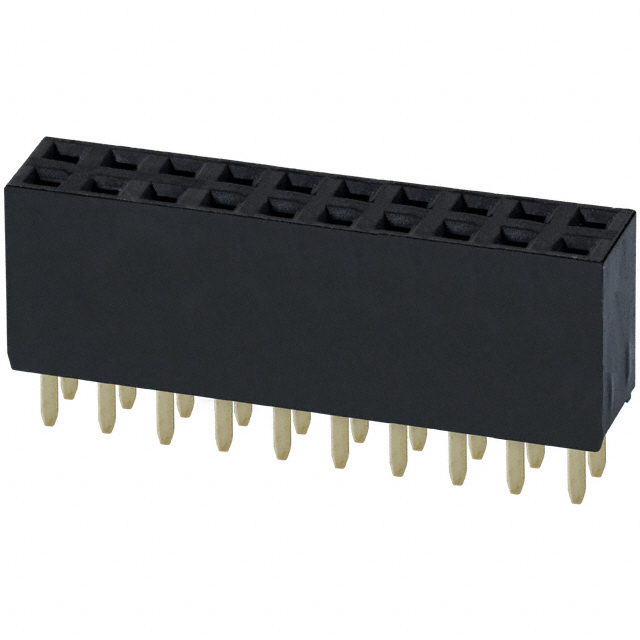

Sullins Connector Solutions PPPC102LFBN	Polyester	Flash	Phosphor Bronze	Square	20	Black	0.335 "	8.51 mm	0.1 in	2.54 mm	2	Through Hole	Header	0.126 "	3.2 mm	250 V	UL94 V-0	Gold	Gold	Female Socket	Flash	-40 C	105 ░C	Push-Pull	0.1 "	2.54 mm	3 A	Solder	All

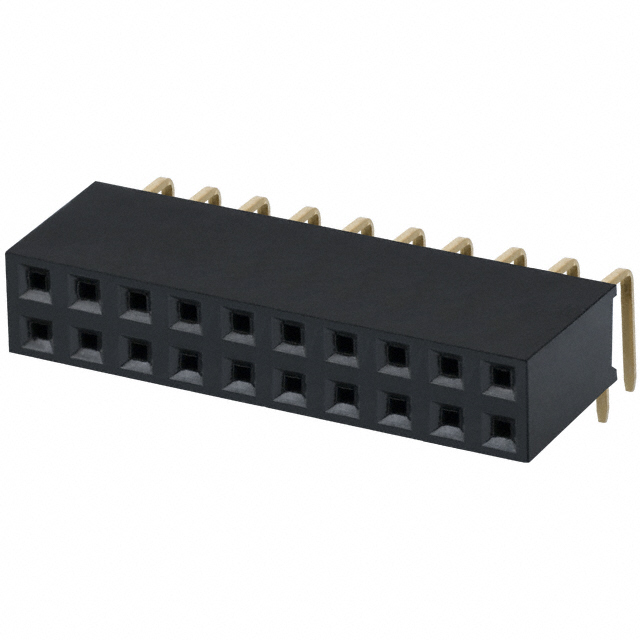

Sullins Connector Solutions PPPC102LJBN	Polyester	Flash	Phosphor Bronze	Square	20	Black			0.1 in	2.54 mm	2	Right Angle Through Hole	Header			250 V	UL94 V-0	Gold	Gold	Female Socket	Flash	-40 C	105 ░C	Push-Pull	0.1 "	2.54 mm	3 A	Solder	All	0.124 in	3.15 mm	0.2 in	5.08 mm
