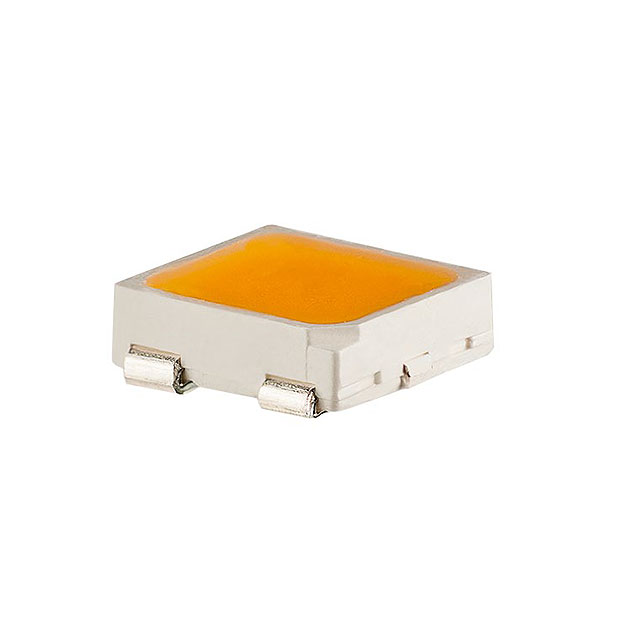

MLEAWT Series
Manufacturer: Cree LED
Catalog
XLAMP ML-E LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES
...
| Part | Mounting Type | Supplier Device Package | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | Package / Case | Lumens/Watt @ Current - Test | Thermal Resistance of Package [custom] | Viewing Angle | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Max [Max] | CCT (K) | CCT (K) [Max] | CCT (K) [Min] | Flux @ 25°C, Current - Test | Color | Flux @ 85°C, Current - Test | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Current - Test | Flux @ 25°C, Current - Test [Min] | Flux @ 25°C, Current - Test [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 102 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 175 mA | 5100 K | 5700 K | 4500 K | 49 lm | Cool White | 44 lm | 1.33 mm | 0.052 in | 150 mA | ||
 Cree LED | Surface Mount | SMD | 3.2 V | 90 | 4-SMD J-Lead Exposed Pad | 90 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | Warm White | 39 lm | 1.33 mm | 0.052 in | 150 mA | 40 lm | 46 lm | ||||
Cree LED | Surface Mount | SMD | 3.2 V | 90 | 4-SMD J-Lead Exposed Pad | 79 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 2500 K | 3063 K | 1950 K | Warm White | 34 lm | 1.33 mm | 0.052 in | 150 mA | |||
Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 123 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 175 mA | 4250 K | 3750 K | Neutral White | 53 lm | 1.33 mm | 0.052 in | 150 mA | ||||
Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 123 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 6200 K | Cool White | 53 lm | 1.33 mm | 0.052 in | 150 mA | |||||
Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 102 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 49 lm | Cool White | 42 lm | 1.33 mm | 0.052 in | 150 mA | |||||
Cree LED | Surface Mount | SMD | 3.2 V | 90 | 4-SMD J-Lead Exposed Pad | 79 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 2775 K | 2600 K | Warm White | 34 lm | 1.33 mm | 0.052 in | 150 mA | ||||
Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 79 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 2700 K | Warm White | 34 lm | 1.33 mm | 0.052 in | 150 mA | |||||
Cree LED | Surface Mount | SMD | 3.2 V | 75 | 4-SMD J-Lead Exposed Pad | 79 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | White | 32 lm | 1.33 mm | 0.052 in | 150 mA | ||||||
Cree LED | Surface Mount | SMD | 3.2 V | 80 | 4-SMD J-Lead Exposed Pad | 79 lm/W | 11 °C/W | 120 ° | 3.5 mm | 0.124 " | 3.15 mm | 0.138 " | 500 mA | 3250 K | Warm White | 34 lm | 1.33 mm | 0.052 in | 150 mA |
