FLZ6 Series

Catalog

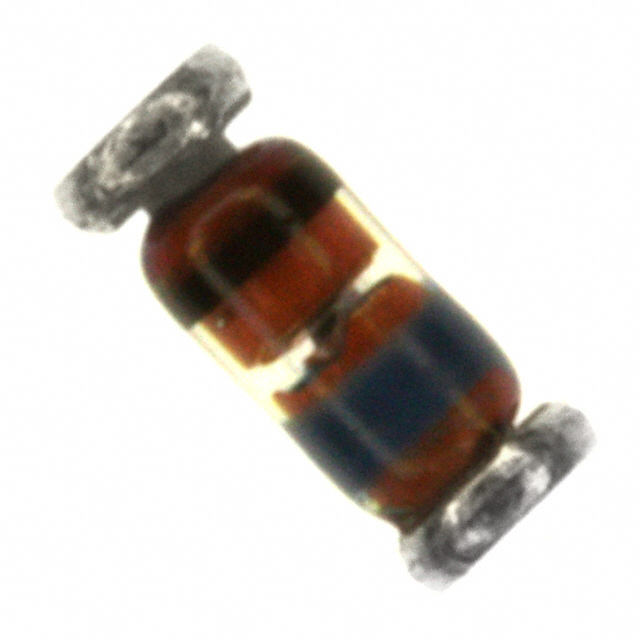

DIODE ZENER 6.3V 500MW SOD80

Part	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Zener (Nom) (Vz)	Impedance (Max) (Zzt) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Power - Max [Max]	Supplier Device Package
ON Semiconductor FLZ6V2C	3 %	-65 ░C	347 °F	6.3 V	8.5 Ohms	DO-213AC MINI-MELF SOD-80	1.2 V	Surface Mount	3.3 µA	500 mW	SOD-80
ON Semiconductor FLZ6V8A	3 %	-65 ░C	347 °F	6.5 V	6.6 Ohms	DO-213AC MINI-MELF SOD-80	1.2 V	Surface Mount	1.1 µA	500 mW	SOD-80
ON Semiconductor FLZ6V2C	3 %	-65 ░C	347 °F	6.3 V	8.5 Ohms	DO-213AC MINI-MELF SOD-80	1.2 V	Surface Mount	3.3 µA	500 mW	SOD-80
ON Semiconductor FLZ6V8A	3 %	-65 ░C	347 °F	6.5 V	6.6 Ohms	DO-213AC MINI-MELF SOD-80	1.2 V	Surface Mount	1.1 µA	500 mW	SOD-80
ON Semiconductor FLZ6V8B	3 %	-65 ░C	347 °F	6.7 V	6.6 Ohms	DO-213AC MINI-MELF SOD-80	1.2 V	Surface Mount	1.1 µA	500 mW	SOD-80
