1473151 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

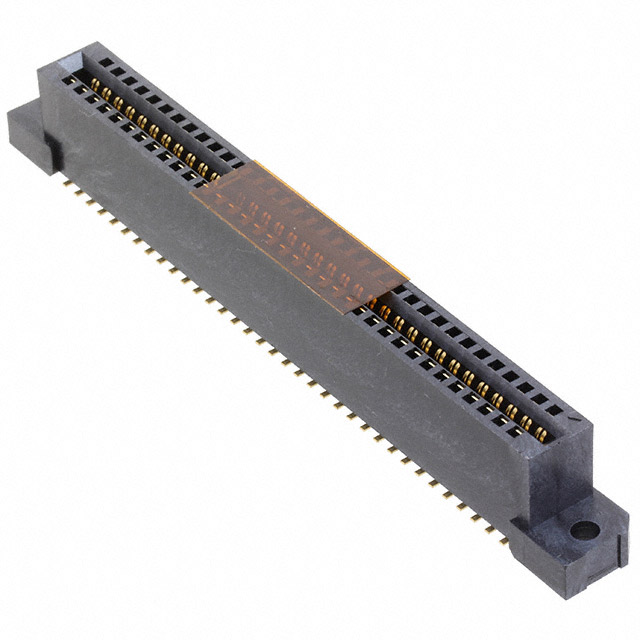

CONN EDGE DUAL FMALE 70POS 0.100
| Part | Read Out | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Contact Material | Termination | Material - Insulation | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Mounting Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Dual | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | -20 C | 80 C | Non Specified - Dual Edge | Copper Alloy | Solder | Thermoplastic | 2.54 mm | 0.1 in | 3.3 mm | Flush Mount Top Opening Unthreaded | 0.13 " | 2 | Surface Mount | Gold |
