S10B-ZR Series

Catalog

CONN HEADER SMD R/A 10POS 1.5MM

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Positions Loaded	Shrouding	Contact Length - Mating	Contact Length - Mating	Connector Type	Insulation Color	Voltage Rating	Insulation Height	Insulation Height	Number of Positions	Features	Mounting Type	Termination	Material Flammability Rating	Fastening Type	Contact Material	Contact Shape	Number of Rows	Style	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post [x]
JST Sales America Inc. S10B-ZR-SM2-TF	Male Pin	85 °C	-25 °C	Glass Filled Nylon 4/6 Polyamide (PA46)	All	Shrouded - 4 Wall	2.4 mm	0.094 in	Header	Natural	50 V	3.7 mm	0.146 in	10	Board Guide	Right Angle Surface Mount	Solder	UL94 V-0	Detent Lock	Brass	Circular	1	Board to Cable/Wire	Tin

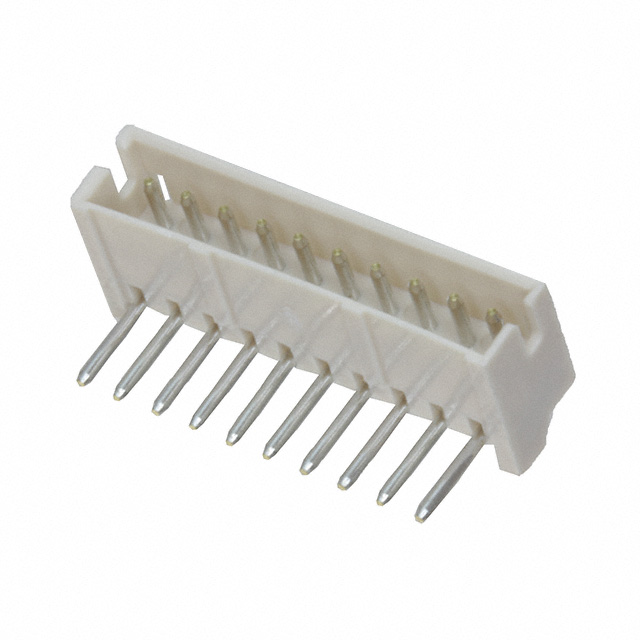

JST Sales America Inc. S10B-ZR-3.4	Male Pin	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	All	Shrouded - 4 Wall			Header	Natural	50 V	3.7 mm	0.146 in	10		Right Angle Through Hole	Solder	UL94 V-0	Detent Lock	Brass	Circular	1	Board to Cable/Wire	Tin	0.134 "	3.4 mm
JST Sales America Inc. S10B-ZR-SM4A-TF	Male Pin	85 °C	-25 °C	Nylon 6T Polyamide (PA6T)	All	Shrouded - 4 Wall			Header	Natural	50 V	3.7 mm	0.146 in	10	Solder Retention	Right Angle Surface Mount	Solder	UL94 V-0	Detent Lock	Brass	Circular	1	Board to Cable/Wire	Tin

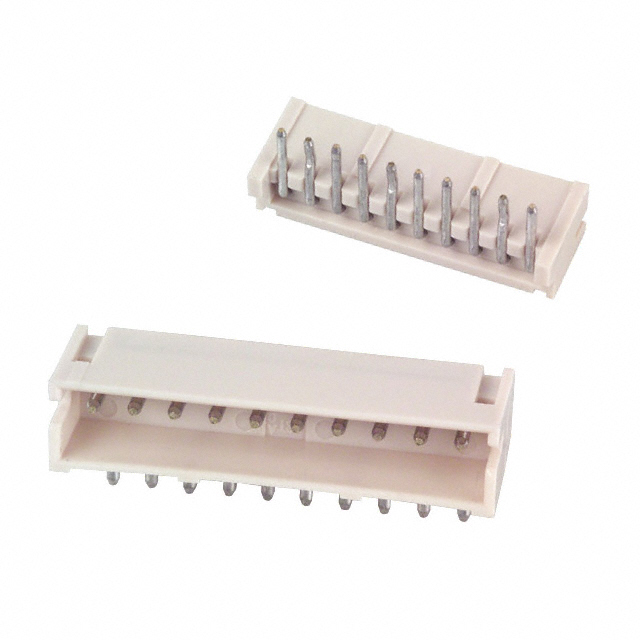

JST Sales America Inc. S10B-ZR	Male Pin	85 °C	-25 °C	Glass Filled Nylon 6/6 Polyamide (PA66)	All	Shrouded - 4 Wall	2.4 mm	0.094 in	Header	Natural	50 V	3.7 mm	0.146 in	10		Right Angle Through Hole	Solder	UL94 V-0	Detent Lock	Brass	Circular	1	Board to Cable/Wire	Tin	0.106 in		2.69 mm
