M22-254 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,RECEPT,18 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL ROHS COMPLIANT: YES

Part	Connector Type	Contact Finish - Mating	Fastening Type	Contact Material	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Mounting Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Shape	Contact Length - Post	Contact Length - Post	Termination	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish - Post

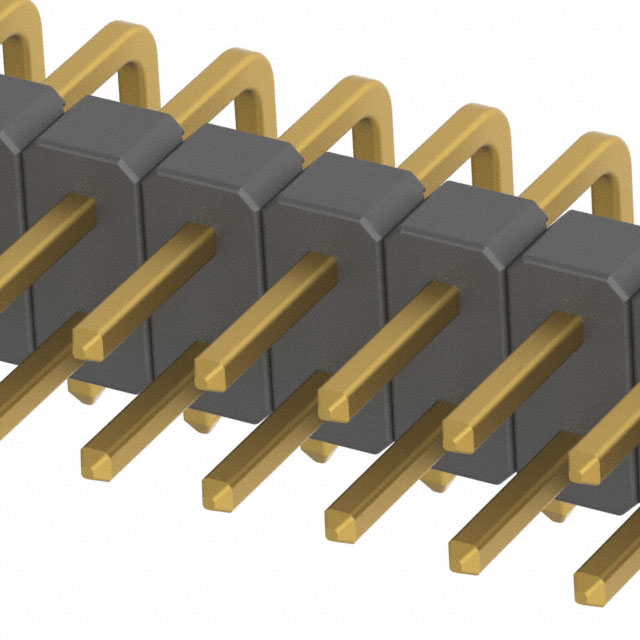

Harwin Inc. M22-2540905	Header Cuttable	Gold	Push-Pull	Phosphor Bronze	2 A	18	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm
Harwin Inc. M22-2540505	Header Cuttable	Gold	Push-Pull	Phosphor Bronze	2 A	10	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm

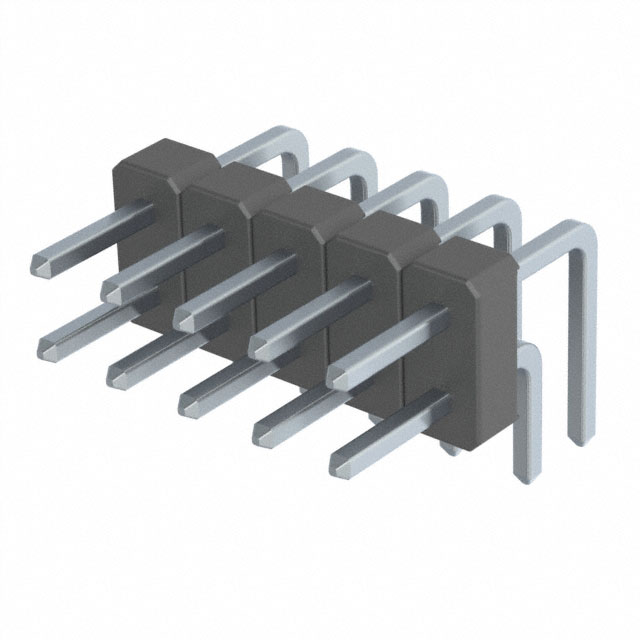

Harwin Inc. M22-2540546	Header Cuttable		Push-Pull	Phosphor Bronze	2 A	10	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm	Tin

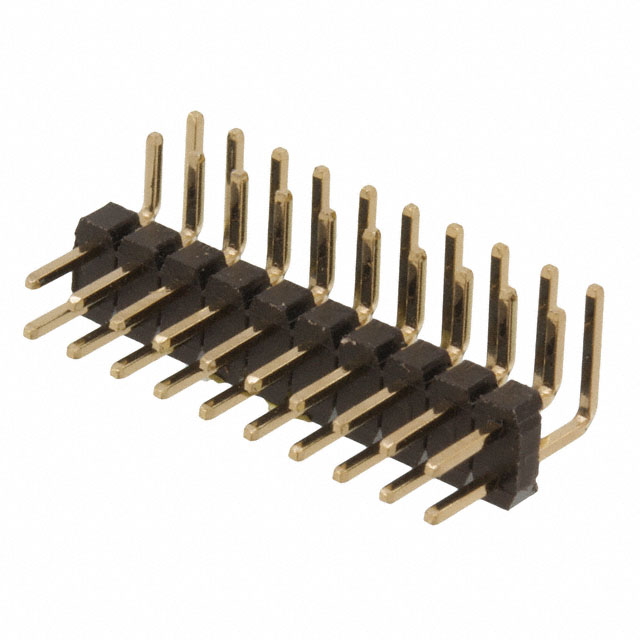

Harwin Inc. M22-2541005	Header Cuttable	Gold	Push-Pull	Phosphor Bronze	2 A	20	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm
Harwin Inc. M22-2540805	Header Cuttable	Gold	Push-Pull	Phosphor Bronze	2 A	16	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm

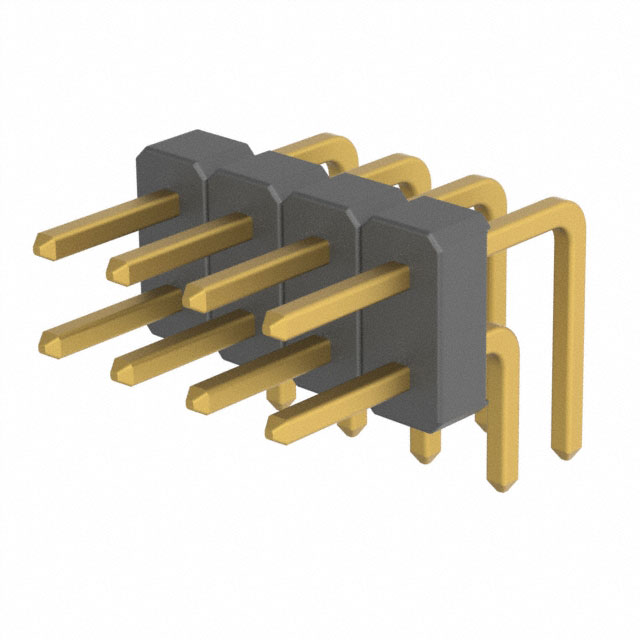

Harwin Inc. M22-2540405	Header Cuttable	Gold	Push-Pull	Phosphor Bronze	2 A	8	UL94 V-0	Right Angle Through Hole	Black	3.5 mm	0.138 in	Unshrouded	4 mm	0.157 in	2	Square	2.4 mm	0.094 in	Solder	2 mm	0.079 in	-40 C	105 ░C	Nylon 6T Polyamide (PA6T)	Male Pin	All	0.079 "	2 mm
