8458MN Series
Manufacturer: Belden Inc.
Beta
⌘K

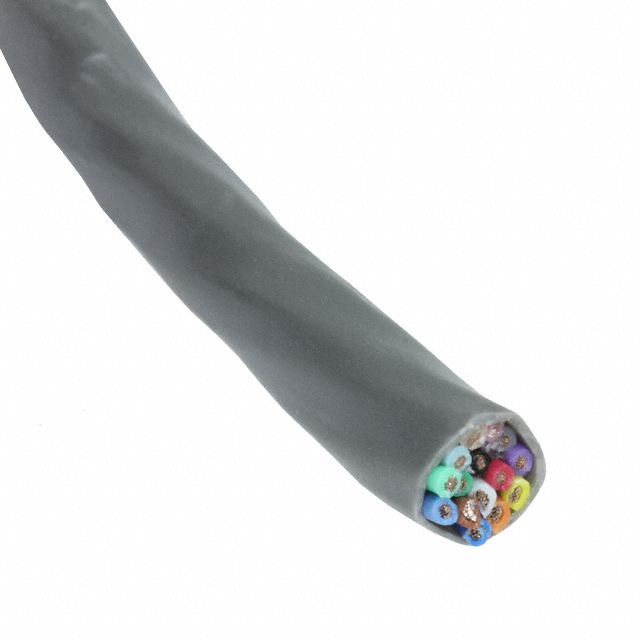

CABLE 15COND 22AWG GRAY
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Voltage | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Wire Gauge | Conductor Material | Usage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.406 mm | 0.016 in | Poly-Vinyl Chloride (PVC) | 300 VDC | Polypropylene (PP) | 80 °C | -20 ░C | 15 | Gray | 34 AWG | 19 | UL Style 2937 | 6.78 mm | 0.267 in | 304.8 m | 1000 ft | 22 AWG | Copper Tinned | Audio Control Instrumentation | Multi-Conductor |
