211-60 Series

Catalog

CABLE MANAGEMENT, CLIP POLYAMIDE 6/6 NATURAL SCREW MOUNT 8MM BAG

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Width [x]	Width [x]	Type	Mounting Type	Material Thickness	Material Thickness	Material	Panel Hole Size	Panel Hole Size	Opening Size	Opening Size	Color	Material Flammability Rating	Screw Size	Screw Size	Features	Material Thickness [x]	Material Thickness [x]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]
HELLERMANNTYTON 211-60049	0.394 in	10 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	0.315 in	8 mm	Natural	UL94 V-2
HELLERMANNTYTON 211-60040	0.394 in	10 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.039 "	1 mm	Polyamide (PA66) Nylon 6/6			0.256 in	6.5 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized
HELLERMANNTYTON 211-60089	0.591 in	15 mm	10 mm	0.394 "	Clamp P-Type	Fastener			Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	0.551 "	14 mm	Natural	UL94 V-2				0.059 in	1.5 mm

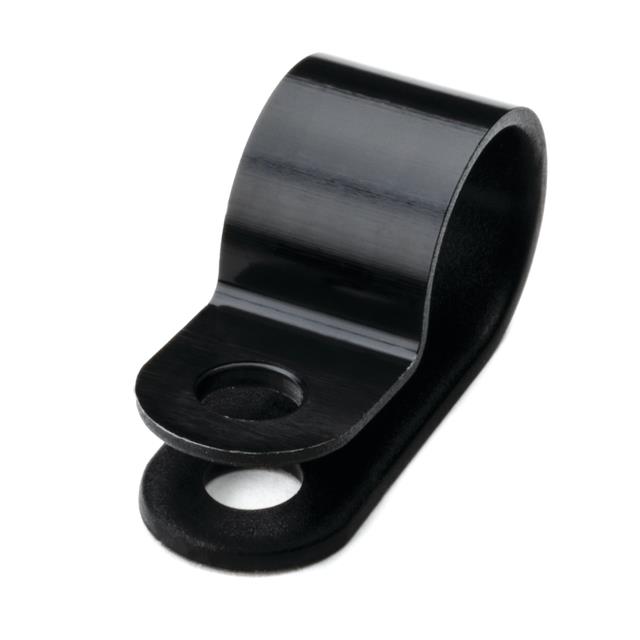

HELLERMANNTYTON 211-60005			10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6			0.433 in	11 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized			13 mm	0.512 in

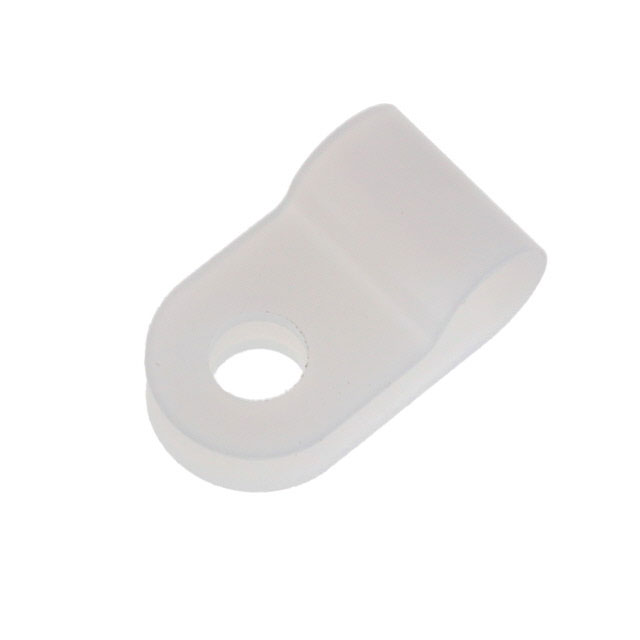

HELLERMANNTYTON 211-60029	0.374 in	9.5 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.039 "	1 mm	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in	0.197 in	5 mm	Natural	UL94 V-2
HELLERMANNTYTON 211-60059	0.433 "	11 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6	4.2 mm	0.165 in			Natural	UL94 V-2

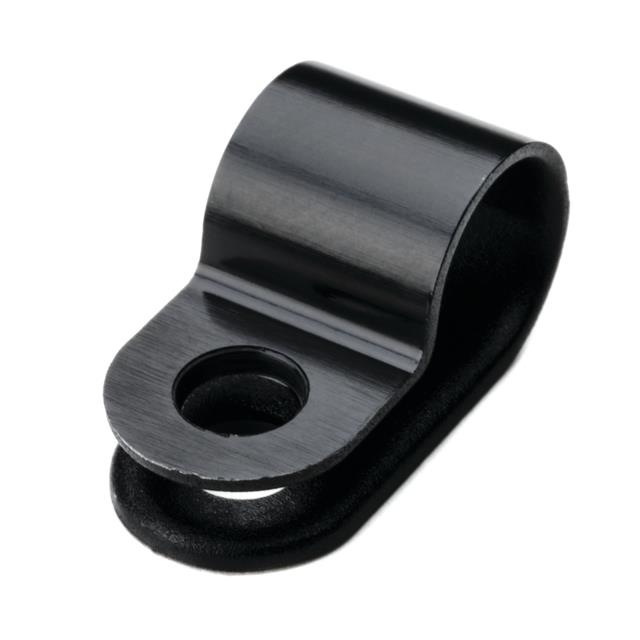

HELLERMANNTYTON 211-60003	0.394 in	10 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6			0.315 in	8 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized

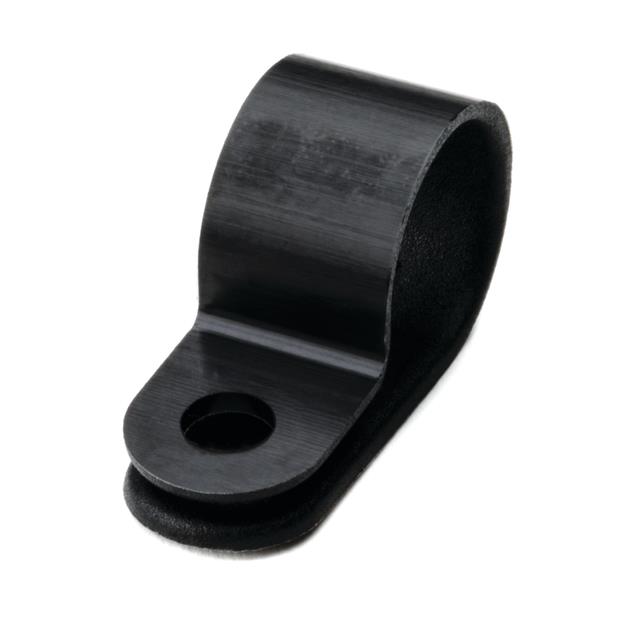

HELLERMANNTYTON 211-60006	0.551 in	14 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6			0.492 "	12.5 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized

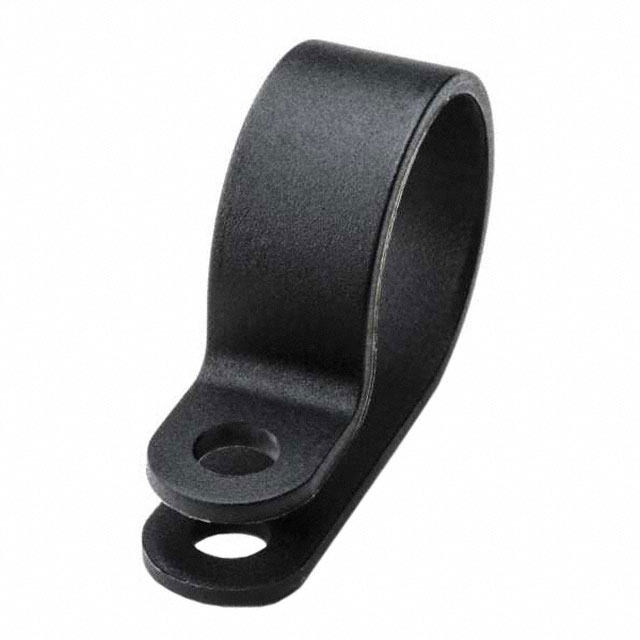

HELLERMANNTYTON 211-60120	0.709 in	18 mm	10 mm	0.394 "	Clamp P-Type	Fastener			Polyamide (PA66) Nylon 6/6			0.748 in	19 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized	0.059 in	1.5 mm
HELLERMANNTYTON 211-60050	0.394 in	10 mm	10 mm	0.394 "	Clamp P-Type	Fastener	0.047 "	1.2 mm	Polyamide (PA66) Nylon 6/6			0.315 in	8 mm	Black	UL94 V-2	0.165 in	4.2 mm	Heat Stabilized
