ESD7008 Series

ESD Protection Diode, High Speed Data, Low Capacitance

Catalog

ESD Protection Diode, High Speed Data, Low Capacitance

Part	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Power Line Protection	Package / Case	Mounting Type	Bidirectional Channels	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Voltage - Reverse Standoff (Typ)	Type

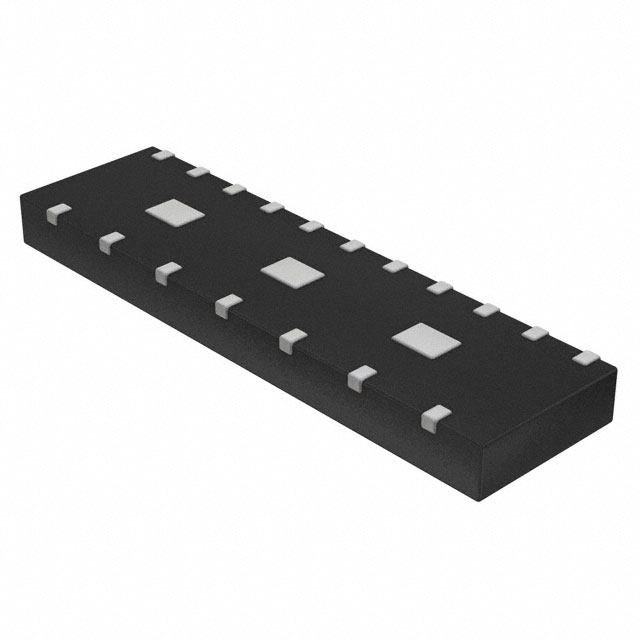

ON Semiconductor ESD7008MUTAG	18-UDFN	5.5	1.5	0.12 pF	125 ¯C	-55 °C	5.5 V		18-UFDFN Exposed Pad	Surface Mount	8	10 V	HDMI USB	5 V	Zener

Catalog

ESD Protection Diode, High Speed Data, Low Capacitance

Key Features

• Integrated 4 Pairs (8 Lines) High Speed Data

• Single Connect, Flow through Routing

• Low Capacitance (0.12 pF Typical, I/O to GND)

• Protection for the Following IEC Standards: IEC 61000-4-2 Level 4

• UL Flammability Rating of 94 V0

• This is a Pb-Free Device

Description

The ESD7008 is designed specifically to protect 4 high speed differential pairs. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed lines.
