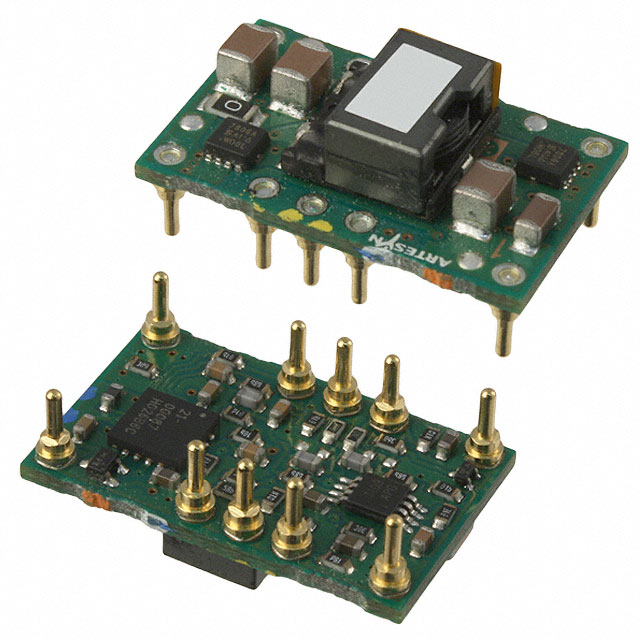

PTH12060W Series

10-A, 12-V Input bus termination power module for DDR/QDR memory

Catalog

10-A, 12-V Input bus termination power module for DDR/QDR memory

Part	Applications	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Features	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]
Texas Instruments PTH12060WAST	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	94 %	10.8 V	10-SMD Module	13.2 V	5.5 V	1.2 V	0.62 "	25.4 mm	15.7 mm	0.38 in	1 in	9.7 mm
Texas Instruments PTH12060LAH	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A		Through Hole	88 %	10.8 V	10-DIP Module	13.2 V	1.8 V	0.8 V	0.62 "	25.4 mm	15.7 mm	0.35 "	1 in	8.9 mm
Texas Instruments PTH12060YAZT	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	83 %	10.8 V	10-SMD Module	13.2 V	1.8 V	0.55 V	0.62 "	25.3 mm	15.8 mm	0.38 in	0.99 in	9.6 mm
Texas Instruments PTH12060WAZT	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	94 %	10.8 V	10-SMD Module	13.2 V	5.5 V	1.2 V	0.62 "	25.4 mm	15.7 mm	0.38 in	1 in	9.7 mm
Texas Instruments PTH12060WAZ	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	94 %	10.8 V	10-SMD Module	13.2 V	5.5 V	1.2 V	0.62 "	25.3 mm	15.8 mm	0.38 in	0.99 in	9.6 mm
Texas Instruments PTH12060YAG
Texas Instruments PTH12060LAS	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	88 %	10.8 V	10-SMD Module	13.2 V	1.8 V	0.8 V	0.62 "	25.3 mm	15.8 mm	0.38 in	0.99 in	9.6 mm
Texas Instruments PTH12060WAH	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A		Through Hole	94 %	10.8 V	10-DIP Module	13.2 V	5.5 V	1.2 V	0.62 "	25.4 mm	15.7 mm	0.35 "	1 in	8.9 mm
Texas Instruments PTH12060LAST	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	88 %	10.8 V	10-SMD Module	13.2 V	1.8 V	0.8 V	0.62 "	25.4 mm	15.7 mm	0.38 in	1 in	9.7 mm
Texas Instruments PTH12060LAZT	ITE (Commercial)	1	85 °C	-40 °C	Non-Isolated PoL Module	10 A	OCP Remote On/Off UVLO	Surface Mount	88 %	10.8 V	10-SMD Module	13.2 V	1.8 V	0.8 V	0.62 "	25.4 mm	15.7 mm	0.38 in	1 in	9.7 mm

Catalog

10-A, 12-V Input bus termination power module for DDR/QDR memory

Key Features

• Up to 10-A Output Current12-V Input VoltageWide-Output Voltage Adjust(1.2 V to 5.5 V/(0.8 V to 1.8 V)Efficiencies up to 95%225 W/in3Power DensityOutput Voltage SenseMargin Up/Down ControlsUndervoltage LockoutAuto-Track SequencingPre-Bias Start-up Capabilityusing On/Off InhibitOutput Overcurrent Protection(Non-latching, Auto-Reset)Operating Temperature: -40°C to 85°CSafety Agency Approvals:UL/IEC/CSA C22.2 60950-1Point-of-Load Alliance (POLA) CompatibleAPPLICATIONSComplex DigitalUp to 10-A Output Current12-V Input VoltageWide-Output Voltage Adjust(1.2 V to 5.5 V/(0.8 V to 1.8 V)Efficiencies up to 95%225 W/in3Power DensityOutput Voltage SenseMargin Up/Down ControlsUndervoltage LockoutAuto-Track SequencingPre-Bias Start-up Capabilityusing On/Off InhibitOutput Overcurrent Protection(Non-latching, Auto-Reset)Operating Temperature: -40°C to 85°CSafety Agency Approvals:UL/IEC/CSA C22.2 60950-1Point-of-Load Alliance (POLA) CompatibleAPPLICATIONSComplex Digital

Description

The PTHxx060Y are a series of ready-to-use switching regulator modules from Texas Instruments designed specifically for bus termination in DDR and QDR memory applications. Operating from either a 3.3-V, 5-V or 12-V input, the modules generate a VTToutput that will source or sink up to 10 A of current to accurately track their VREFinput. VTTis the required bus termination supply voltage, and VREFis the reference voltage for the memory and chipset bus receiver comparators. VREFis usually set to half the VDDQpower supply voltage. Both the PTHxx060Y series employs an actively switched synchronous rectifier output to provide state-of-the-art stepdown switching conversion. The products are small in size (1 in × 0.62 in), and are an ideal choice where space, performance, and high efficiency are desired, along with the convenience of a ready-to-use module. Operating features include an on/off inhibit and output over-current protection (source mode only). The on/off inhibit feature allows the VTTbus to be turned off to save power in a standby mode of operation. To ensure tight load regulation, an output remote sense is also provided. Package options include both throughhole and surface mount configurations. The PTHxx060Y are a series of ready-to-use switching regulator modules from Texas Instruments designed specifically for bus termination in DDR and QDR memory applications. Operating from either a 3.3-V, 5-V or 12-V input, the modules generate a VTToutput that will source or sink up to 10 A of current to accurately track their VREFinput. VTTis the required bus termination supply voltage, and VREFis the reference voltage for the memory and chipset bus receiver comparators. VREFis usually set to half the VDDQpower supply voltage. Both the PTHxx060Y series employs an actively switched synchronous rectifier output to provide state-of-the-art stepdown switching conversion. The products are small in size (1 in × 0.62 in), and are an ideal choice where space, performance, and high efficiency are desired, along with the convenience of a ready-to-use module. Operating features include an on/off inhibit and output over-current protection (source mode only). The on/off inhibit feature allows the VTTbus to be turned off to save power in a standby mode of operation. To ensure tight load regulation, an output remote sense is also provided. Package options include both throughhole and surface mount configurations.
