PKG.M1 Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT FMALE 10P SOLDER CUP
| Part | Shell Material | Primary Material | Number of Positions | Fastening Type | Applications | Ingress Protection | Insert Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish - Mating | Mounting Feature | Shell Size - Insert | Mounting Type | Shielding | Connector Type | Orientation [custom] | Termination | Contact Type | Note | Contact Shape | Housing Color | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

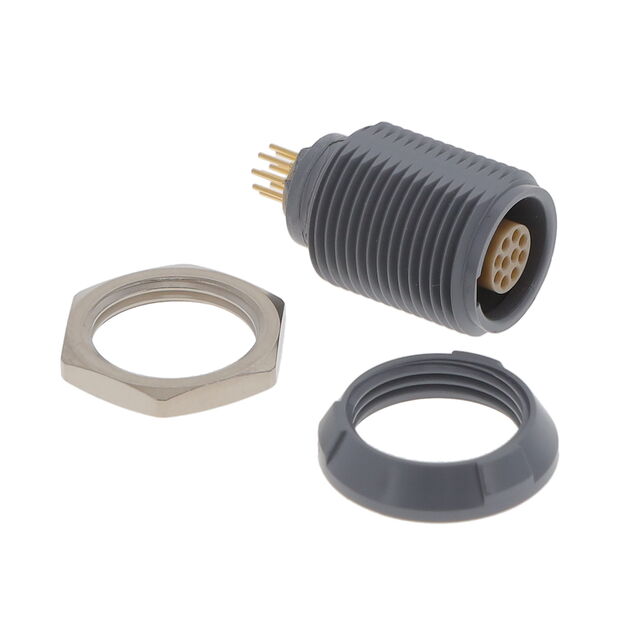

LEMO | Polysulfone (PSU) | Plastic | 10 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Blue Gray | 150 °C | -50 °C | 3 A | Gold | Front and Rear Side Nut | M10 | Panel Mount | Unshielded | Receptacle Female Sockets | G | ||||||

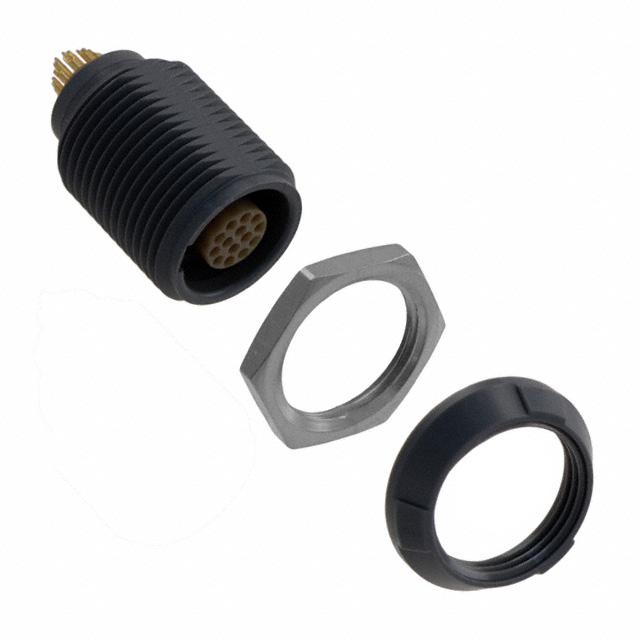

LEMO | Polysulfone (PSU) | Plastic | 14 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray White | 150 °C | -50 °C | 2 A | Gold | Front and Rear Side Nut | M14 | Panel Mount Right Angle Through Hole | Unshielded | Receptacle Female Sockets | G | Solder | |||||

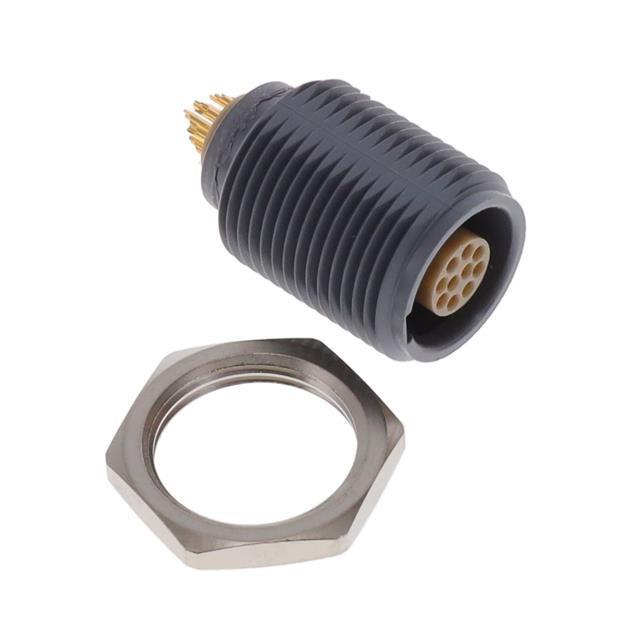

LEMO | Polysulfone (PSU) | Plastic | 10 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | 150 °C | -50 °C | 3 A | Gold | Front and Rear Side Nut | M10 | Panel Mount Right Angle Through Hole | Unshielded | Receptacle Female Sockets | G | Solder | |||||
LEMO | Polysulfone (PSU) | Plastic | 14 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | 150 °C | -50 °C | 2 A | Gold | Front and Rear Side Nut | M14 | Panel Mount | Unshielded | Receptacle Female Sockets | G | ||||||

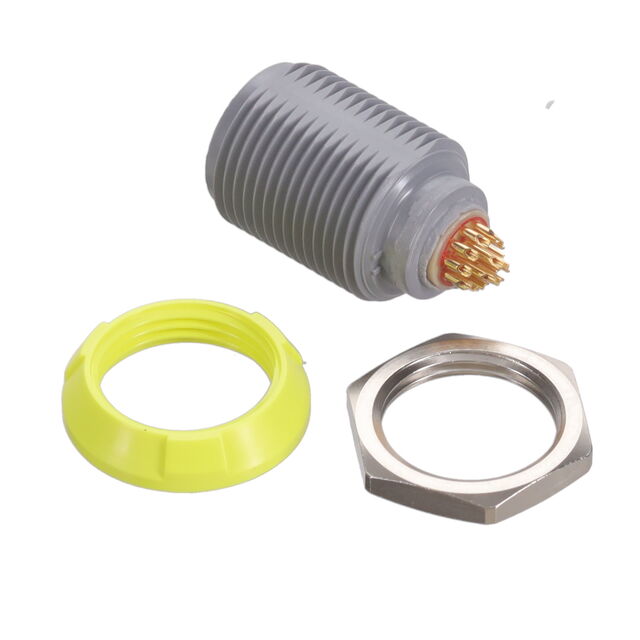

 LEMO | Polyetherimide (PEI) | Plastic | 14 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Yellow | 170 °C | -50 °C | 2 A | Gold | Front and Rear Side Nut | M14 | Panel Mount | Unshielded | Receptacle Female Sockets | G | ||||||
LEMO | Polyetherimide (PEI) | Plastic | 14 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray Green | 170 °C | -50 °C | 2 A | Gold | Front and Rear Side Nut | M14 | Panel Mount Through Hole | Unshielded | Receptacle Female Sockets | G | Solder | |||||
 LEMO | Polyetherimide (PEI) | Plastic | 14 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | 170 °C | -50 °C | 2 A | Gold | Front and Rear Side Nut | M14 | Panel Mount | Unshielded | Receptacle Female Sockets | G | ||||||
 LEMO | Polyetherimide (PEI) | Plastic | 10 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | 170 °C | -50 °C | 3 A | Gold | Front and Rear Side Nut | M10 | Panel Mount | Unshielded | Receptacle Female Sockets | G | ||||||
LEMO | Polyetherimide (PEI) | 14 | Detent Lock Push-Pull | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 170 °C | -50 °C | Bulkhead - Front or Rear Side Nut | M14 | Panel Mount | Unshielded | Receptacle Housing | G | Crimp | Contacts Not Included | Circular | Gray | For Female Sockets | ||||||
LEMO | Polysulfone (PSU) | Plastic | 10 | Detent Lock Push-Pull | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gray | 150 °C | -50 °C | 3 A | Gold | Front and Rear Side Nut | M10 | Panel Mount Through Hole | Unshielded | Receptacle Female Sockets | G | Solder |
