0467-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.022 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Diameter [diameter]	Tail Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Tail Type	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish

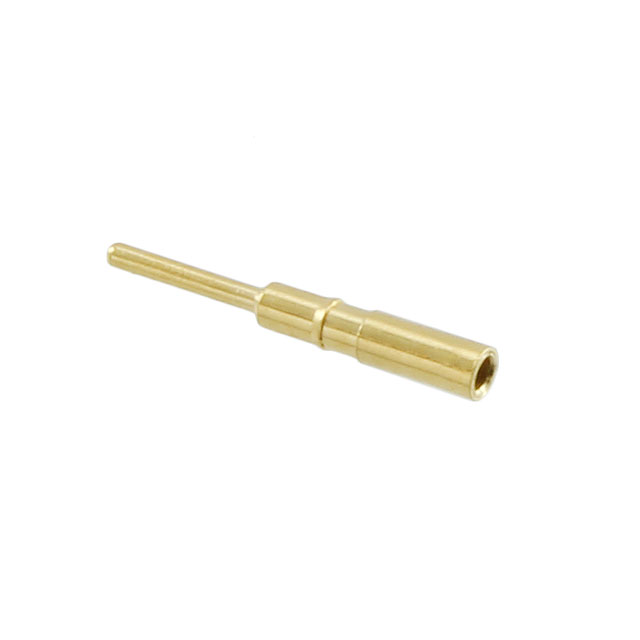

Mill-Max Manufacturing Corp. 0467-0-15-15-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	30 Áin	0.76 Ám	0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm	Gold
Mill-Max Manufacturing Corp. 0467-0-15-15-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	10 Áin	0.25 Ám	0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm	Gold
Mill-Max Manufacturing Corp. 0467-0-15-01-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	30 Áin	0.76 Ám	0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm	Gold
Mill-Max Manufacturing Corp. 0467-0-15-80-21-84-04-0	-55 C	125 °C	0.041 in	1.04 mm	100 µin	2.54 µm	0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm	Tin
Mill-Max Manufacturing Corp. 0467-0-15-80-21-09-04-0	-55 C	125 °C	0.041 in	1.04 mm			0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm
Mill-Max Manufacturing Corp. 0467-0-15-01-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	10 Áin	0.25 Ám	0.46 mm	0.018 in	0.031 in	0.79 mm	Beryllium Copper	Standard Tail	3.81 mm	0.15 in	0.037 in	0.94 mm	Press-Fit	0.38 mm	0.022 in	0.015 "	0.56 mm	0.3 "	7.62 mm	Gold
