PZU20 Series

Catalog

DIODE ZENER 20V 310MW SOD323F

Part	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Tolerance	Grade	Impedance (Max) (Zzt) [Max]	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If	Power - Max [Max]	Current - Reverse Leakage @ Vr	Voltage - Zener (Nom) (Vz)	Mounting Type
Freescale Semiconductor - NXP PZU20B1,115	-65 ░C	150 °C	AEC-Q100	2 %	Automotive	20 Ohms	SOD-323F	SC-90 SOD-323F	1.1 V	310 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20B3A,115	-55 °C	150 °C		2 %		20 Ohms	SOD-323	SC-76 SOD-323	1.1 V	320 mW	50 nA	20 V	Surface Mount

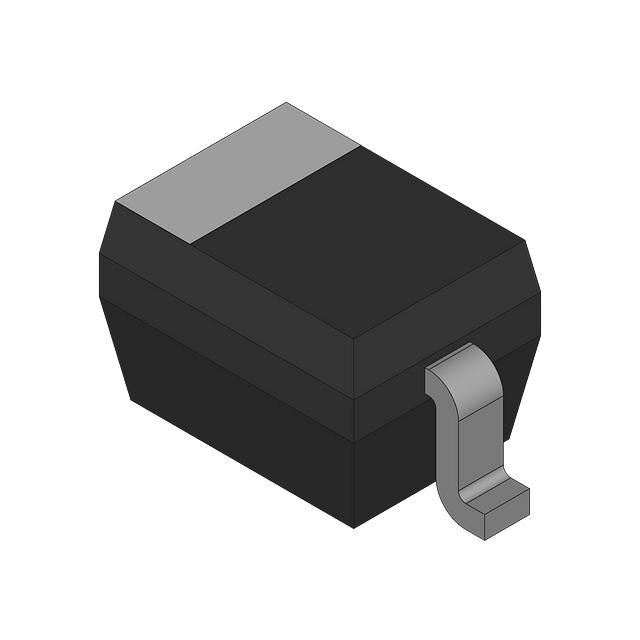

Freescale Semiconductor - NXP PZU20B1A,115	-55 °C	150 °C		2 %		20 Ohms	SOD-323	SC-76 SOD-323	1.1 V	320 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20BL,315	-55 °C	150 °C	AEC-Q100	5 %	Automotive	20 Ohms	DFN1006-2	SOD-882	1.1 V	250 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20B2,115	-65 ░C	150 °C	AEC-Q100	2 %	Automotive	20 Ohms	SOD-323F	SC-90 SOD-323F	1.1 V	310 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20B2L,315	-55 °C	150 °C	AEC-Q100	2 %	Automotive	20 Ohms	DFN1006-2	SOD-882	1.1 V	250 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20B2A,115	-55 °C	150 °C		2 %		20 Ohms	SOD-323	SC-76 SOD-323	1.1 V	320 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20B3,115	-65 ░C	150 °C	AEC-Q100	2 %	Automotive	20 Ohms	SOD-323F	SC-90 SOD-323F	1.1 V	310 mW	50 nA	20 V	Surface Mount
Freescale Semiconductor - NXP PZU20BA,115	-55 °C	150 °C		5 %		20 Ohms	SOD-323	SC-76 SOD-323	1.1 V	320 mW	50 nA	20 V	Surface Mount
