C14621R024 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD CPLNG BOTTOM SZE24 M25

Part	Style	Connector Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Housing Material	Size	Lock Location	Ingress Protection	Thread Size	Features	Operating Temperature [Min]	Operating Temperature [Max]

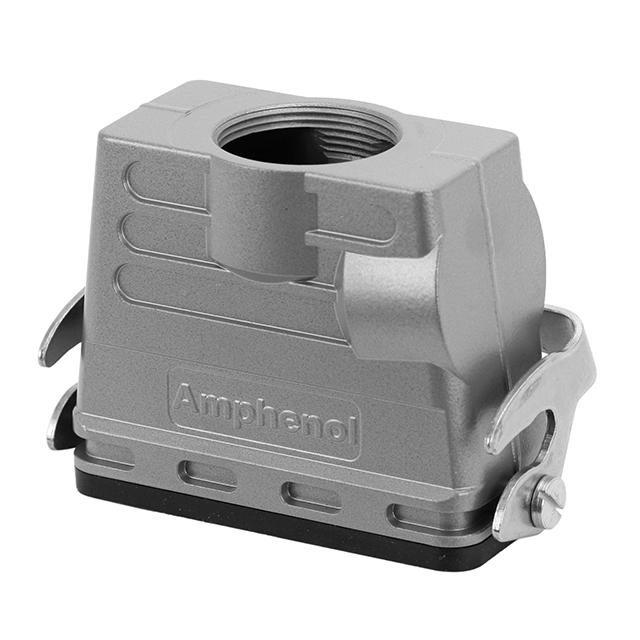

Amphenol Tuchel Industrial C14621R0248541	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm	Aluminum Alloy Die Cast	E24	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	M25	Cable to Cable	-40 C	100 °C

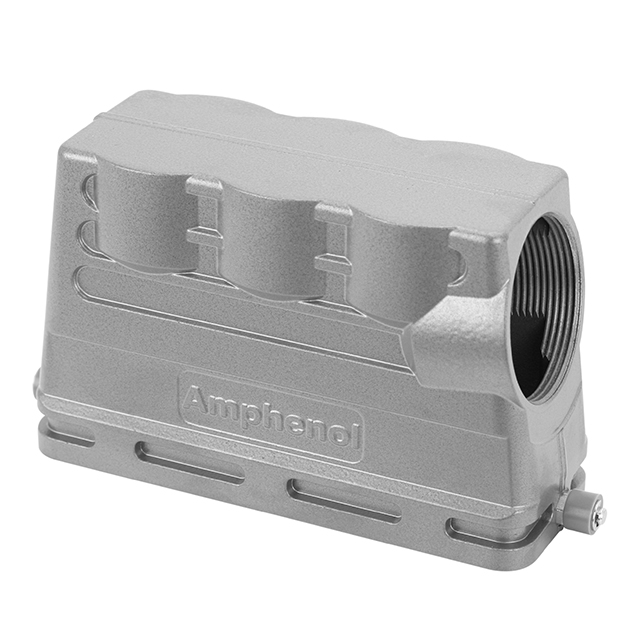

Amphenol Tuchel Industrial C14621R0245568	Side Entry	Hood	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	M25		-40 C	100 °C
Amphenol Tuchel Industrial C14621R0248028	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	M32	Cable to Cable	-40 C	100 °C
Amphenol Tuchel Industrial C14621R0246078	Top Entry	Hood	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant			-40 C	100 °C

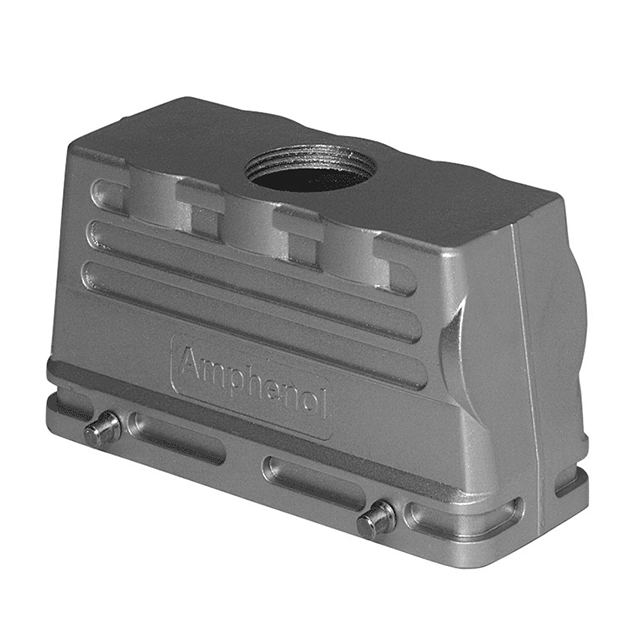

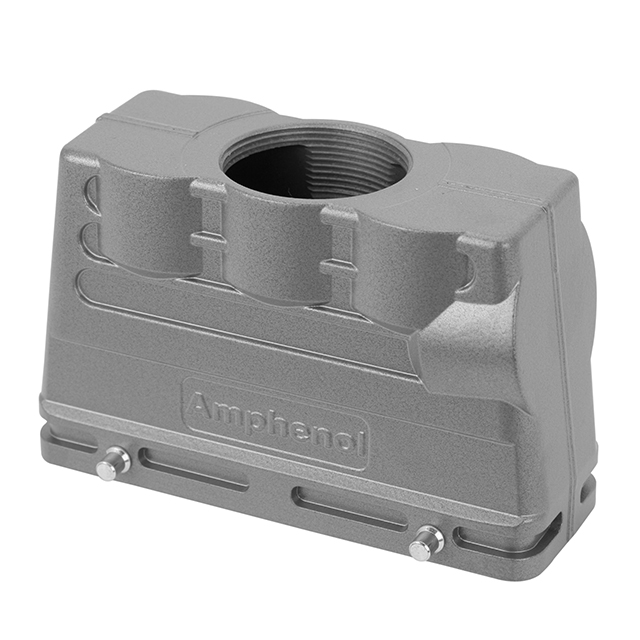

Amphenol Tuchel Industrial C14621R0246501	Top Entry	Hood	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm	Aluminum Alloy Die Cast	E24	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	M25		-40 C	100 °C

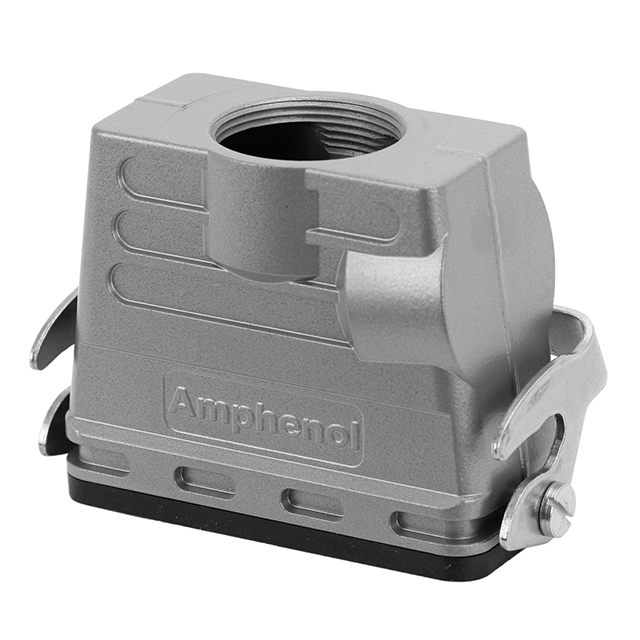

Amphenol Tuchel Industrial C14621R0248058	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (1) on Hood Top	IP65 - Dust Tight Water Resistant		Cable to Cable	-40 C	100 °C

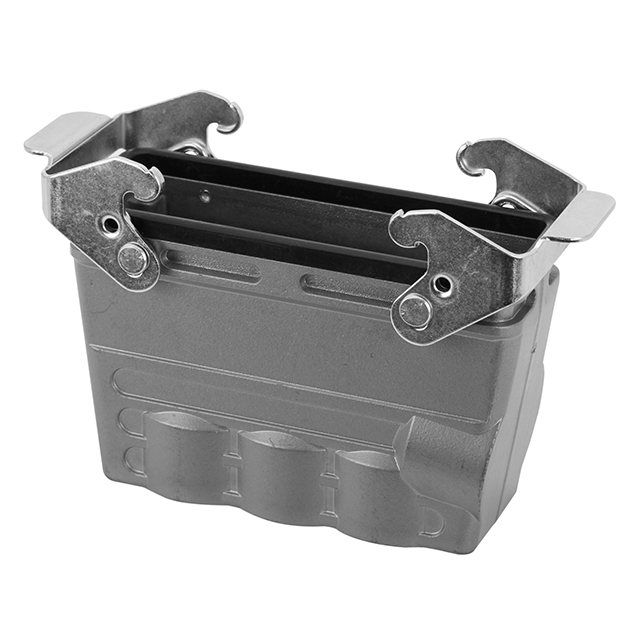

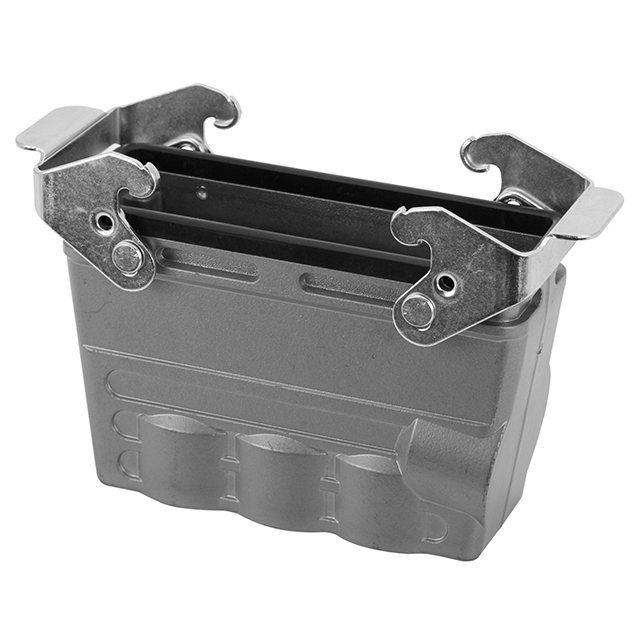

Amphenol Tuchel Industrial C14621R0248038	Bottom Entry Top or Bottom Entry	Hood - Coupling	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant		Cable to Cable	-40 C	100 °C
Amphenol Tuchel Industrial C14621R0246018	Top Entry	Hood	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant			-40 C	100 °C

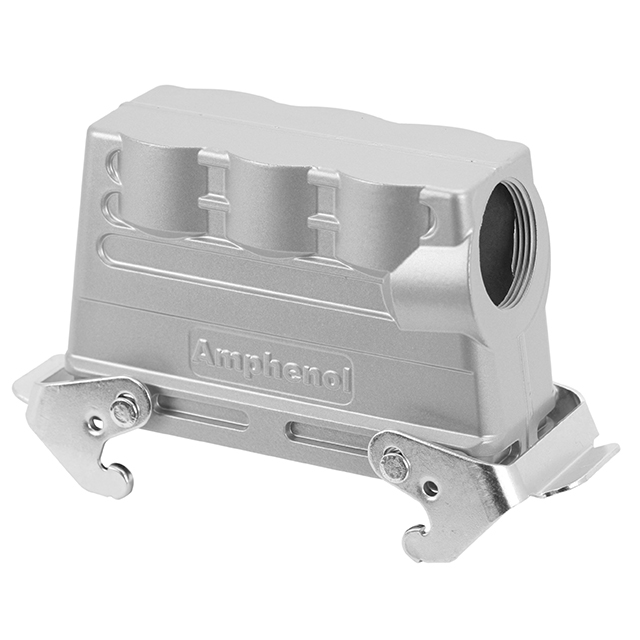

Amphenol Tuchel Industrial C14621R0245021	Side Entry	Hood	2.441 "	120 mm	4.724 in	1.693 "	43 mm	62 mm	Aluminum Alloy Die Cast	E24	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant	M32		-40 C	100 °C

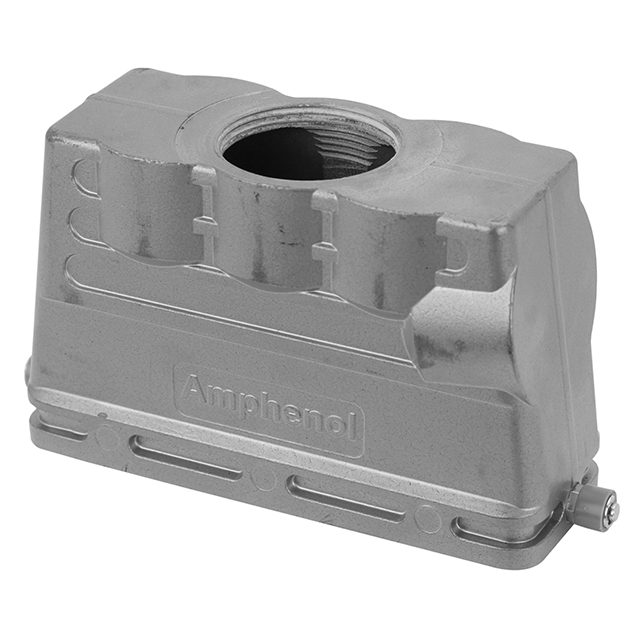

Amphenol Tuchel Industrial C14621R0246568	Top Entry	Hood	2.992 in	120 mm	4.724 in	1.693 "	43 mm	76 mm	Aluminum Die Cast	E24	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	M25		-40 C	100 °C
