2406845 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

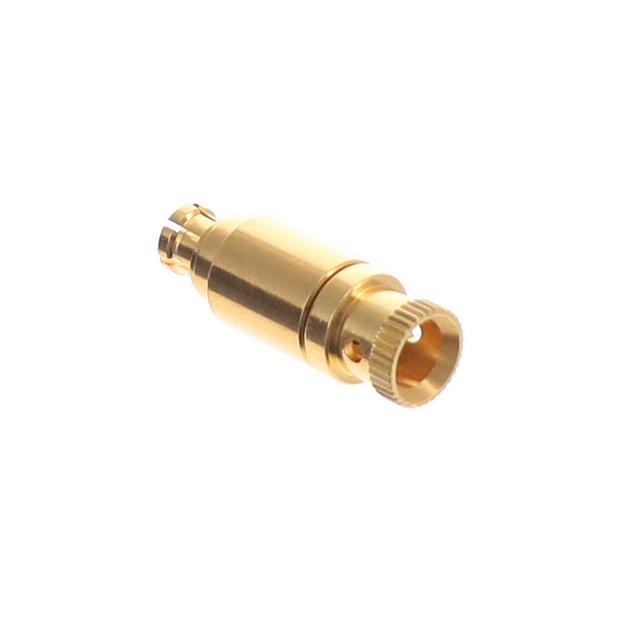

SSMP FEMALE S/T FOR TFLEX-405 CA
| Part | Mating Cycles | Number of Ports | Cable Group | Mounting Type | Center Contact Material | Dielectric Material | Connector Style | Contact Termination | Body Material | Body Finish | Housing Color | Connector Type | Shield Termination | Voltage Rating | Fastening Type | Center Contact Plating | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 | 1 | RG-405 | Free Hanging (In-Line) | Beryllium Copper | Polyetheretherketone (PEEK) | SMPM | Solder | Beryllium Copper | Gold | Gold | Female Socket Receptacle | Solder | 175 VDC | Snap-On | Gold | 50 Ohms | 125 °C | -40 °C | 40 GHz |
