PTH03000W Series

6 A, 3.3-V Input Wide-Output Adjust Plug-in Power Module

Catalog

6 A, 3.3-V Input Wide-Output Adjust Plug-in Power Module

Part	Type	Efficiency	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Applications	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case

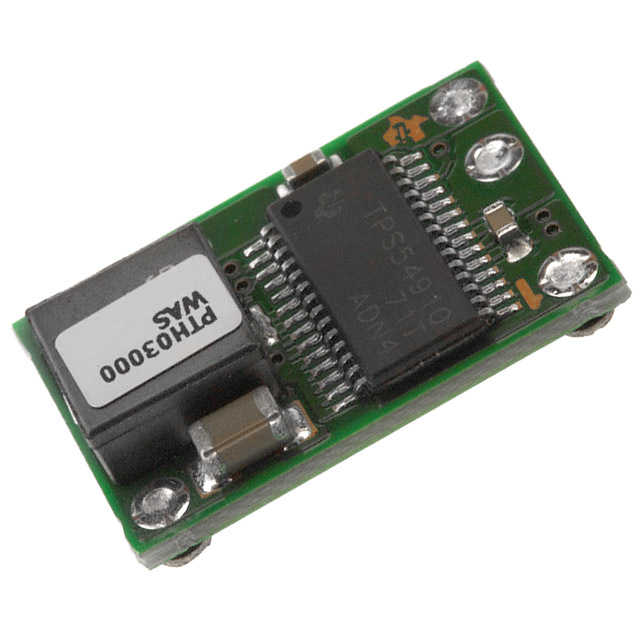

Texas Instruments PTH03000WAS	Non-Isolated PoL Module	93 %	Surface Mount	6 A	85 °C	-40 °C	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	3 V	ITE (Commercial)	0.9 V	2.5 V	1	3.6 V	5-SMD Module
Texas Instruments PTH03000WAZ	Non-Isolated PoL Module	93 %	Surface Mount	6 A	85 °C	-40 °C	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	3 V	ITE (Commercial)	0.9 V	2.5 V	1	3.6 V	5-SMD Module
Texas Instruments PTH03000WAST	Non-Isolated PoL Module	93 %	Surface Mount	6 A	85 °C	-40 °C	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	3 V	ITE (Commercial)	0.9 V	2.5 V	1	3.6 V	5-SMD Module

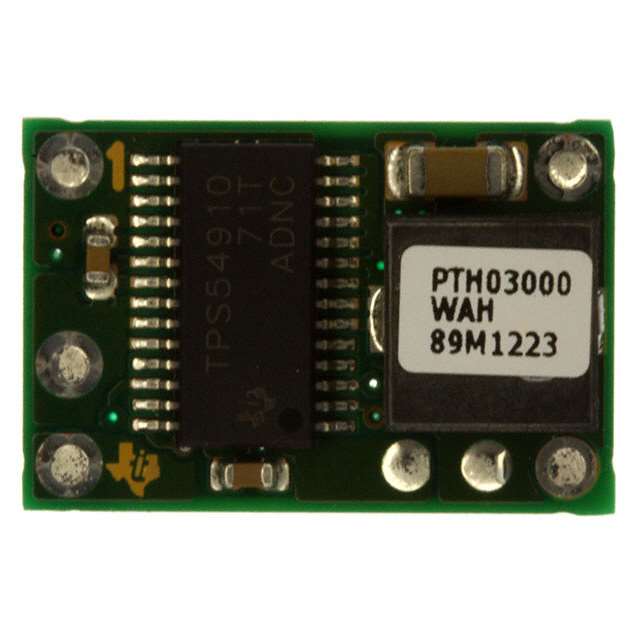

Texas Instruments PTH03000WAH	Non-Isolated PoL Module	93 %	Through Hole	6 A	85 °C	-40 °C	0.75 in	0.5 in	8.6 mm	19.1 mm	12.7 mm	0.34 in	3 V	ITE (Commercial)	0.9 V	2.5 V	1	3.6 V	5-DIP Module
Texas Instruments PTH03000WAD	Non-Isolated PoL Module	93 %	Through Hole	6 A	85 °C	-40 °C	0.75 in	0.5 in	8.6 mm	19.1 mm	12.7 mm	0.34 in	3 V	ITE (Commercial)	0.9 V	2.5 V	1	3.6 V	5-DIP Module

Catalog

6 A, 3.3-V Input Wide-Output Adjust Plug-in Power Module

Key Features

• Up to 6-A Output Current3.3 V Input VoltageWide-Output Voltage Adjust (0.9 V to 2.5 V)Efficiencies up to 95%115 W/in³ Power DensityOn/Off InhibitUnder-Voltage LockoutOutput Current LimitOver-Temperature ProtectionOperating Temp: –40 to +85°CSurface Mount PackageSafety Agency Approvals (Pending): UL 1950, CSA 22.2 950, EN60950 & VDEUp to 6-A Output Current3.3 V Input VoltageWide-Output Voltage Adjust (0.9 V to 2.5 V)Efficiencies up to 95%115 W/in³ Power DensityOn/Off InhibitUnder-Voltage LockoutOutput Current LimitOver-Temperature ProtectionOperating Temp: –40 to +85°CSurface Mount PackageSafety Agency Approvals (Pending): UL 1950, CSA 22.2 950, EN60950 & VDE

Description

The PTH03000 series of non-isolated power modules are small in size and high on performance. Using double-sided surface mount construction and synchronous rectification technology, these regulators deliver up to 6 A of output current while occupying a PCB area of about half the size of a standard postage stamp. They are an ideal choice for applications where space, performance and cost are important design constraints. This series operates from an input voltage of 3.3-V to provide step-down power conversion to any output voltage over the range, 0.9 V to 2.5 V. The output voltage of the PTH03000W is set within this range using a single resistor. Operating features include an on/off inhibit, output voltage adjust (trim), an output current limit, and over-temperature protection. Target applications include telecom, industrial, and general purpose circuits, including low-power dual-voltage systems that use a DSP, microprocessor, or ASIC. Package options include both through-hole and surface mount configurations. The PTH03000 series of non-isolated power modules are small in size and high on performance. Using double-sided surface mount construction and synchronous rectification technology, these regulators deliver up to 6 A of output current while occupying a PCB area of about half the size of a standard postage stamp. They are an ideal choice for applications where space, performance and cost are important design constraints. This series operates from an input voltage of 3.3-V to provide step-down power conversion to any output voltage over the range, 0.9 V to 2.5 V. The output voltage of the PTH03000W is set within this range using a single resistor. Operating features include an on/off inhibit, output voltage adjust (trim), an output current limit, and over-temperature protection. Target applications include telecom, industrial, and general purpose circuits, including low-power dual-voltage systems that use a DSP, microprocessor, or ASIC. Package options include both through-hole and surface mount configurations.
