6303UE Series
Manufacturer: Belden Inc.
Beta
⌘K

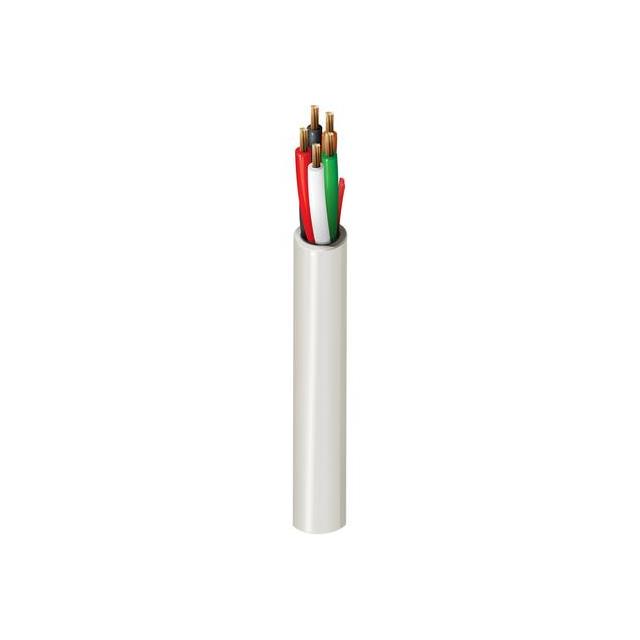

CABLE 5COND 18AWG NATURAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Usage | Wire Gauge | Jacket Color | Length | Length | Cable Type | Conductor Insulation | Voltage | Features | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 75 ░C | 0 °C | 26 AWG | 7 | 5 | Copper Bare | Security Sound | 18 AWG | Natural | 304.8 m | 1000 ft | Multi-Conductor | Low Smoke Poly-Vinyl Chloride (LSPVC) | 300 VDC | Rip Cord | 0.381 mm | 0.015 in | 0.203 in | 5.16 mm | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum |
