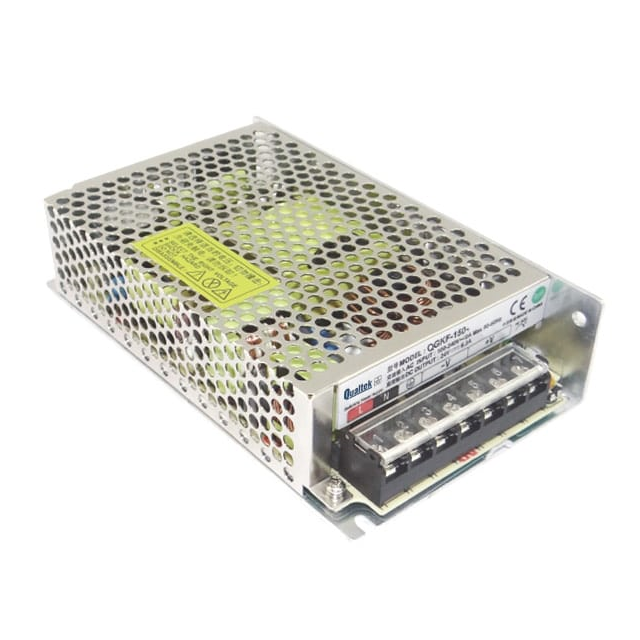

QGKF-150 Series

Manufacturer: Qualtek

Catalog

AC/DC CONVERTER 12V 150W

Part	Minimum Load Required	Voltage - Isolation	Voltage - Output 1	Efficiency	Current - Output 1	Mounting Type	Approval Agency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Applications
Qualtek QGKF-150-12		3000 V	12 V	86 %	12.5 A	Chassis Mount	CB CE cURus	Adjustable Output PFC Universal Input	264 VAC	90 VAC	1	70 °C	-20 °C	150 W	38 mm	160 mm	98.3 mm	3.87 in	6.3 in	1.5 in	Conformal Coated Enclosed	ITE (Commercial)
Qualtek QGKF-150-15		3000 V	15 V	87 %	10 A	Chassis Mount	CB CE cURus	Adjustable Output PFC Universal Input	264 VAC	90 VAC	1	70 °C	-20 °C	150 W	38 mm	160 mm	98.3 mm	3.87 in	6.3 in	1.5 in	Conformal Coated Enclosed	ITE (Commercial)
