MS3106A36 Series
Manufacturer: Amphenol Industrial Operations
Catalog
PLUG
| Part | Color | Number of Positions | Connector Type | Applications | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Qualification | Contact Finish - Mating | Features | Primary Material | Shell Finish | Contact Material | Shell Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Insert Material | Orientation | Shell Size - Insert | Current Rating (Amps) | Grade | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | Olive Drab | 52 | Male Pins Plug | Marine Military | 36 | 52 | MIL-DTL-5015 | Silver | Backshell Coupling Nut | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum Alloy | Free Hanging (In-Line) | -55 °C | 125 °C | Unshielded | Neoprene | N | ||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||
Amphenol Industrial Operations | |||||||||||||||||||||||

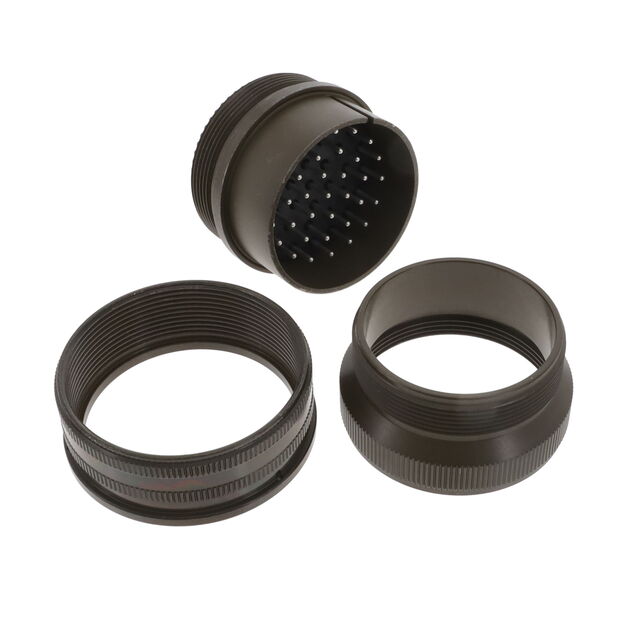

 Amphenol Industrial Operations | Olive Drab | 35 | Male Pins Plug | Marine Military | MIL-DTL-5015 | Silver | Backshell Coupling Nut | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum Alloy | Free Hanging (In-Line) | -55 °C | 125 °C | Unshielded | Neoprene | N | 36-15 | 13 A | Military | Environment Resistant | ||

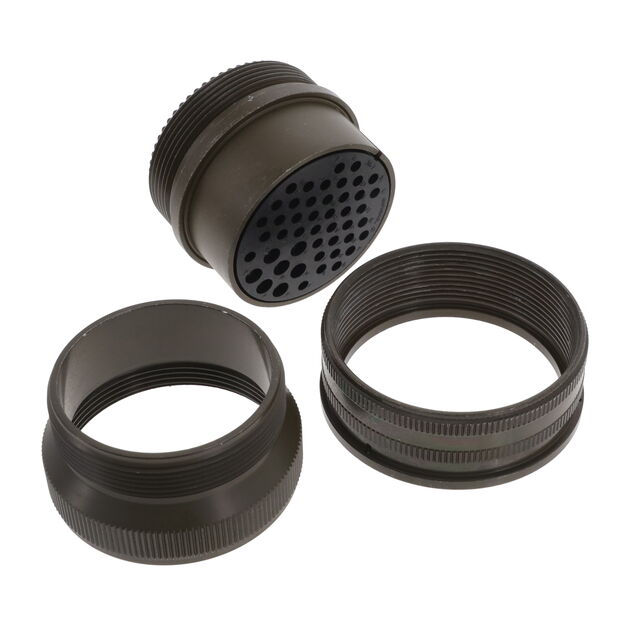

 Amphenol Industrial Operations | Olive Drab | Female Sockets Plug | Marine Military | 7 | 36 | MIL-DTL-5015 | Silver | Backshell Coupling Nut | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum Alloy | Free Hanging (In-Line) | -55 °C | 125 °C | Unshielded | Neoprene | N | 13 A 23 A | Military | Environment Resistant | ||
Amphenol Industrial Operations | Olive Drab | Female Sockets Plug | Marine Military | MIL-5015 | Silver | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum Alloy | Free Hanging (In-Line) | -55 °C | 125 °C | Unshielded | Neoprene | N | 36-4 | Environment Resistant | ||||||
Amphenol Industrial Operations | Olive Drab | 6 | Male Pins Plug | Marine Military | MIL-DTL-5015 | Silver | Backshell Coupling Nut | Metal | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum Alloy | Free Hanging (In-Line) | -55 °C | 125 °C | Unshielded | Neoprene | N | 36-6 | 80 A 150 A | Military | Environment Resistant |
