09620640 Series

Manufacturer: HARTING

Catalog

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; HAN® B,HAN® EMC; IP65

Part	Housing Material	Size	Lock Location	Connector Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Thread Size

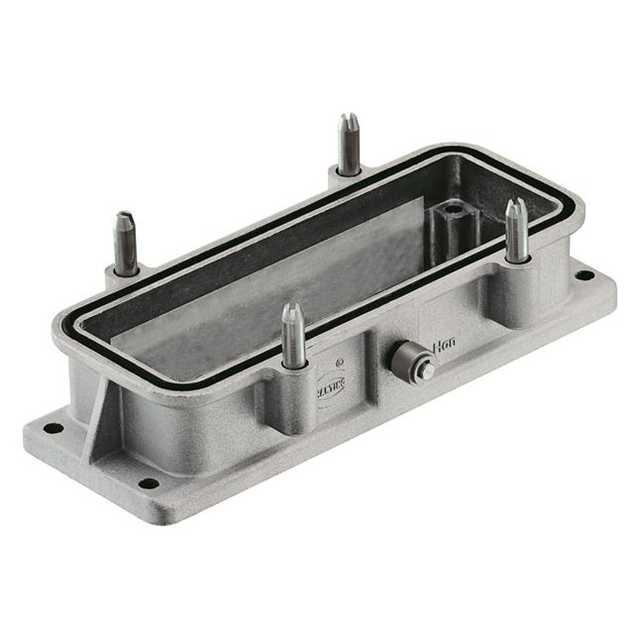

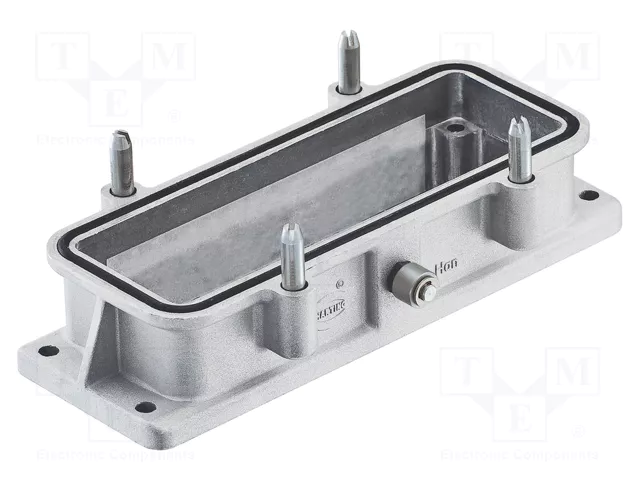

HARTING 09620640381	Aluminum Die Cast	24 B	Locking Clip (1) on Hood	Base - Panel Mount	Bottom Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant
HARTING 09620640388

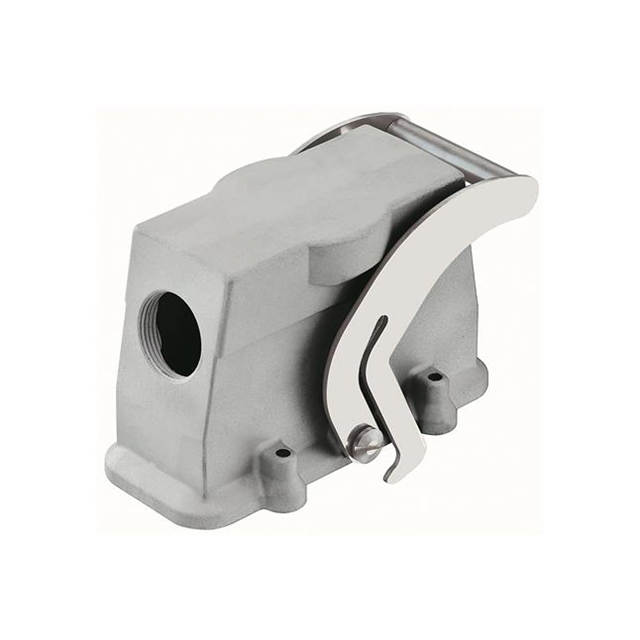

HARTING 09620640580	Aluminum Die Cast	24 B	Locking Clip (1) on Hood	Hood	Side Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG21
HARTING 09620640441	Aluminum Die Cast	24 B	Screw Locks on Hood	Hood	Top Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG29
HARTING 09620640275

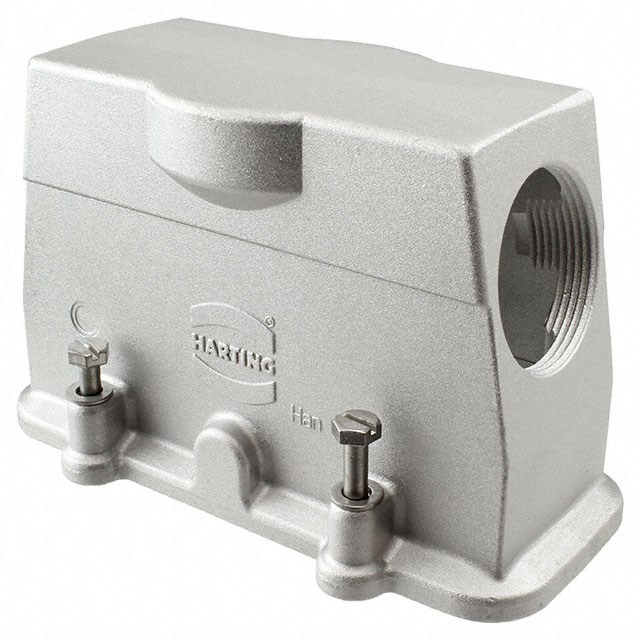

HARTING 09620640541	Aluminum Die Cast	24 B	Screw Locks on Hood	Hood	Side Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG29
HARTING 09620640581	Aluminum Die Cast	24 B	Locking Clip (1) on Hood	Hood	Side Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG29
HARTING 09620640540	Aluminum Die Cast	24 B	Screw Locks on Hood	Hood	Side Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG21

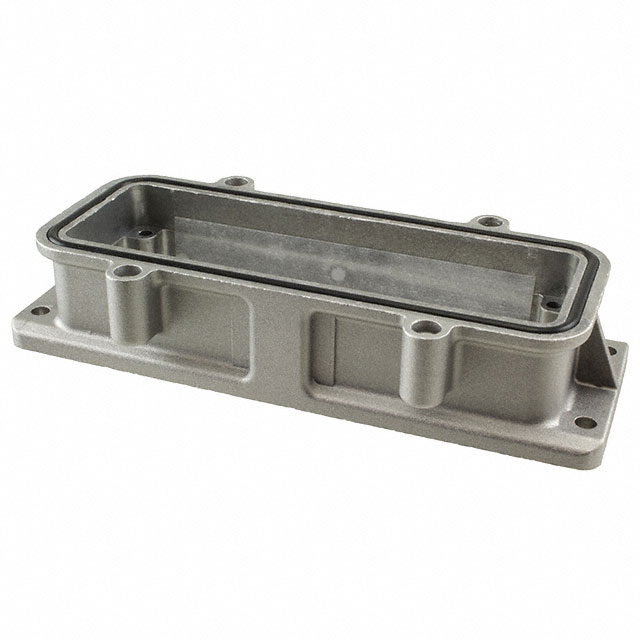

HARTING 09620640301	Aluminum Die Cast	24 B	Screw Locks on Hood	Base - Panel Mount	Bottom Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.118 in	65.6 mm	130 mm	28.2 mm	2.583 in	1.11 in

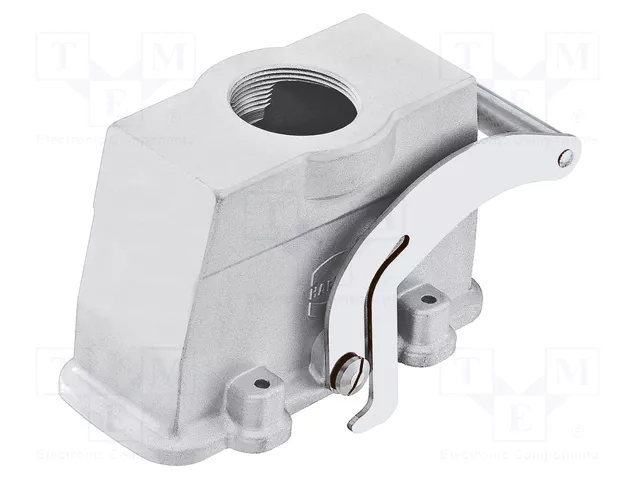

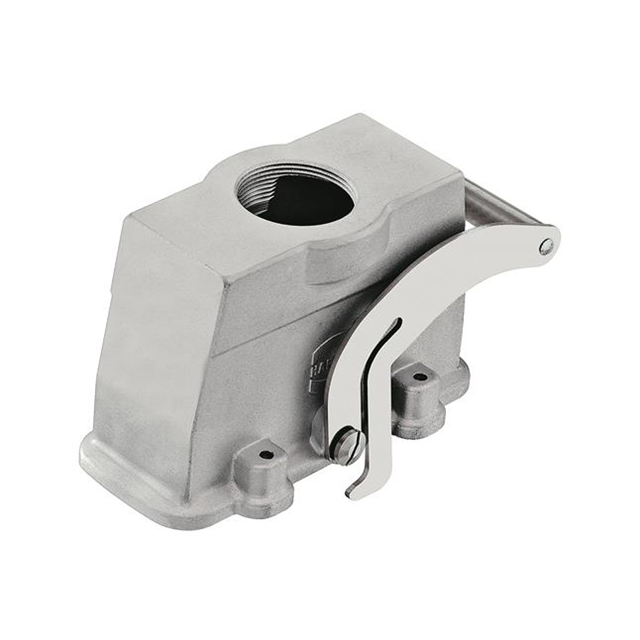

HARTING 09620640481	Aluminum Die Cast	24 B	Locking Clip (1) on Hood	Hood	Top Entry	125 °C	-40 C	IP65 - Dust Tight Water Resistant	5.236 "	71 mm	133 mm	85 mm	2.795 "	3.346 "	PG29
