S18SN6 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

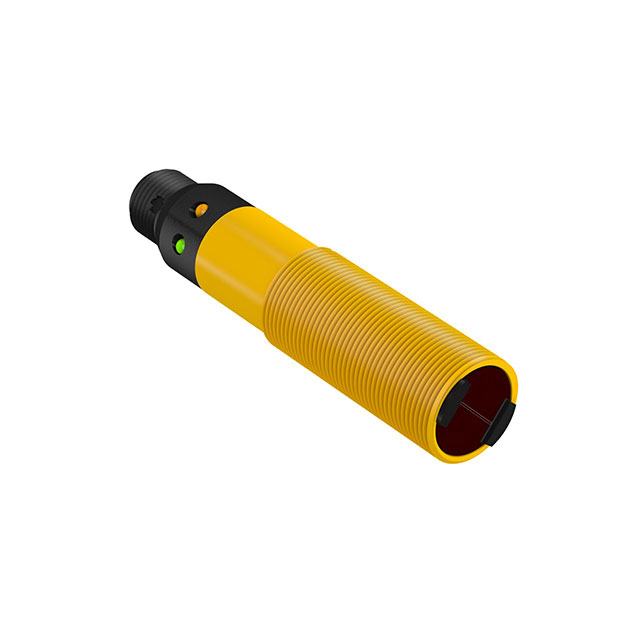

PHOTOELECTRIC SENSOR, S18 SERIES, FIXED-FIELD, 100MM, NPN, 10-30VDC, QUICK DISCONNECT
| Part | Ingress Protection | Connection Method | Sensing Method | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Distance | Sensing Distance | Cable Length | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP69K IP69K NEMA 6P | Connector | Background Suppression | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared LED | 3 ms | 70 °C | -40 C | 10 cm | 3.937 in | ||
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Diffuse | 10 VDC | 30 VDC | Infrared (880nm) | 3 ms | 70 °C | -40 C | 30 cm | 11.811 " | 354.33 in | 9 m | |
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Diffuse | NPN - Light-ON | 10 VDC | 30 VDC | LED | 3 ms | 70 °C | -40 C | 10 cm | 3.937 in | 78.74 " | 2 m |
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Through-Beam | 10 VDC | 30 VDC | Infrared (950nm) | 3 ms | 70 °C | -40 C | 2000 cm | 787.402 in | 354.33 in | 9 m | |
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Diffuse | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared (880nm) | 3 ms | 70 °C | -40 C | 10 cm | 3.937 in | 78.74 " | 2 m |
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Diffuse | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared (880nm) | 3 ms | 70 °C | -40 C | 30 cm | 11.811 " | 78.74 " | 2 m |
 BANNER ENGINEERING | IEC IEC IP69K IP69K NEMA 6P | Connector | Through-Beam | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared LED | 3 ms | 70 °C | -40 C | 2000 cm | 787.402 in | ||
BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Connector | Through-Beam | 10 VDC | 30 VDC | Infrared (950nm) | 3 ms | 70 °C | -40 C | 2000 cm | 787.402 in | |||
BANNER ENGINEERING | IEC IEC IP69K IP69K NEMA 6P | Connector | Diffuse | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared LED | 3 ms | 70 °C | -40 C | 10 cm | 3.937 in | ||
 BANNER ENGINEERING | IEC IEC IP67 IEC IP69K IP67 IP69K NEMA 6P | Cable | Background Suppression | NPN - Dark-ON/Light-ON | 10 VDC | 30 VDC | Infrared (880nm) | 3 ms | 70 °C | -40 C | 5 cm | 1.969 in | 78.74 " | 2 m |
