EN3P3F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

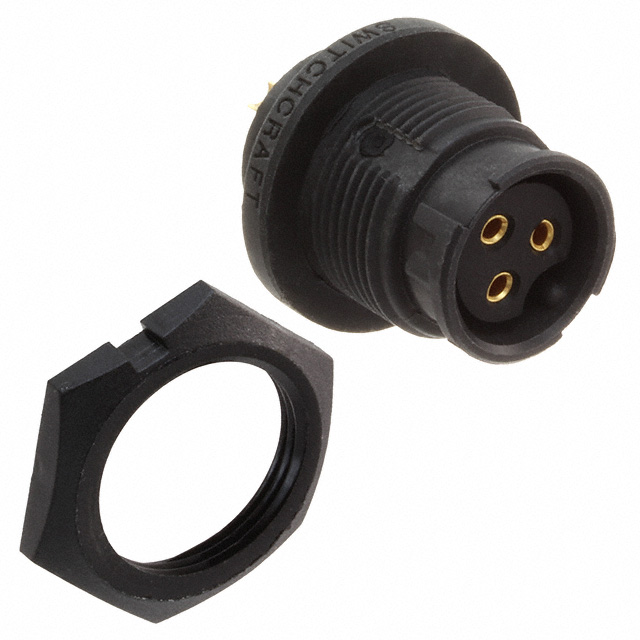

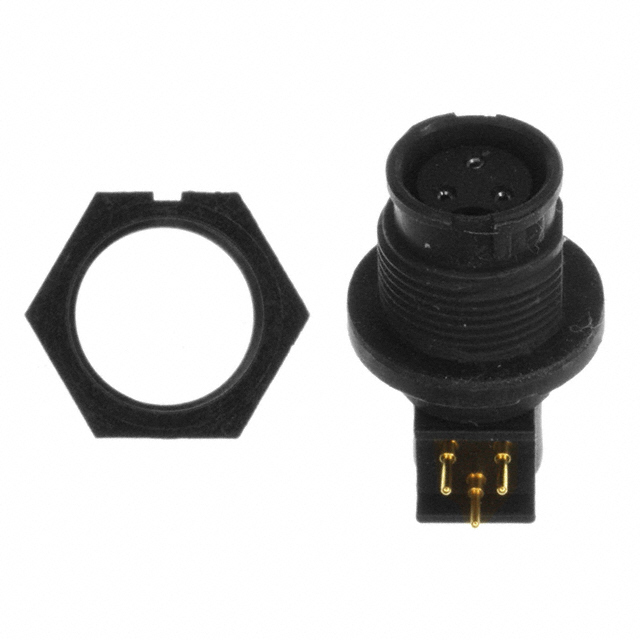

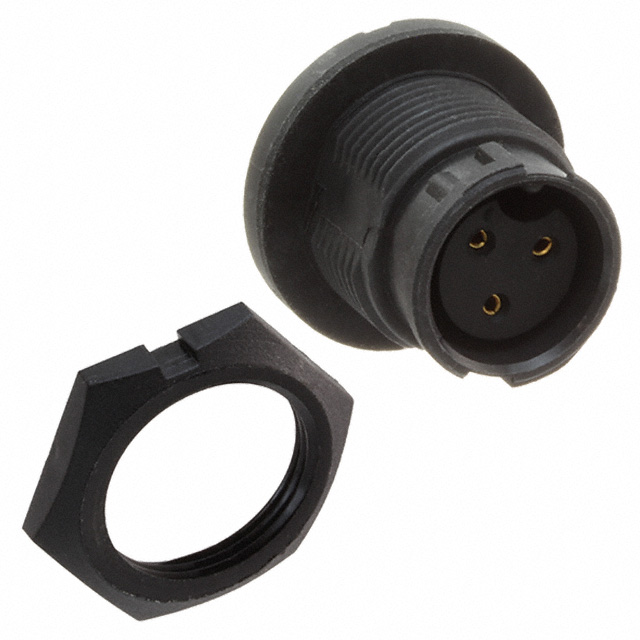

CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Mounting Feature | Connector Type | Primary Material | Shielding | Mounting Type | Material Flammability Rating | Current Rating (Amps) | Contact Finish - Mating | Orientation | Ingress Protection | Applications | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Insert Material | Fastening Type | Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Circuit Board Solder | Elastomer | Bayonet Lock | Black | 250 VAC |
Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | UL94 V-0 | 13 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Crimp | Elastomer | Bayonet Lock | Black | 250 VAC | |
 Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | UL94 V-0 | 13 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Elastomer | Bayonet Lock | Black | 250 VAC | ||
 Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Circuit Board Solder | Elastomer | Bayonet Lock | Black | 250 VAC |
Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | Panel Mount Through Hole | UL94 V-0 | 13 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Solder | Elastomer | Bayonet Lock | Black | 250 VAC |
 Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | Panel Mount Right Angle Through Hole | UL94 V-0 | 5 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Solder | Elastomer | Bayonet Lock | Black | 250 VAC |
 Switchcraft Inc. | Bulkhead - Front Side Nut | Receptacle Female Sockets | Plastic | Unshielded | Panel Mount Through Hole | UL94 V-0 | 7.5 A | Gold | Keyed | IP66/IP68 | General Purpose Instrumentation Marine Medical | Copper Alloy | 65 °C | -40 °C | Solder | Elastomer | Bayonet Lock | Black | 250 VAC |
