207890 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

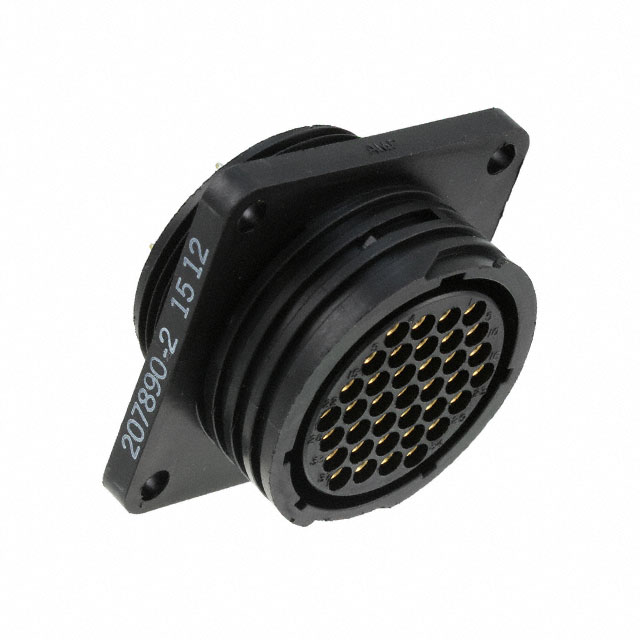

CPC RECPT REV SEX 23-37
| Part | Mounting Feature | Material Flammability Rating | Connector Type | Number of Positions | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Contact Finish - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Termination | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | |||||||||||||||||
 TE Connectivity Raychem Cable Protection | Flange | UL94 V-0 | Receptacle Female Sockets | 37 | 23 | 37 | Gold PdNi +Gold | 250 VAC | 105 ░C | -55 °C | A | 30 Áin | 0.76 Ám | Plastic | Solder | Panel Mount Through Hole | Brass |
