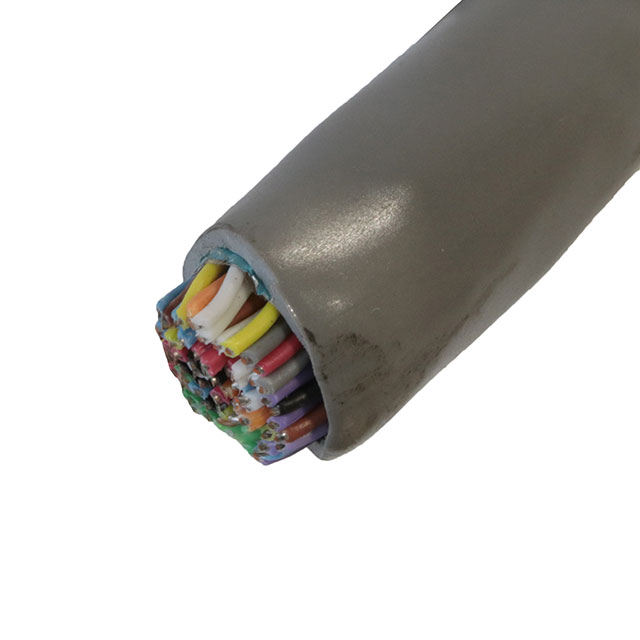

M3190 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 76COND 22AWG
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Conductor Strand | Voltage | Jacket (Insulation) Material | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Wire Gauge | Jacket Color | Length | Length | Ratings | Cable Type | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 80 °C | -20 ░C | Copper Tinned | Foil | 0.61 in | 15.49 mm | Drain Wire | Solid | 300 VDC | Poly-Vinyl Chloride (PVC) | 76 | 1.143 mm | 0.045 in | 22 AWG | Slate | 304.8 m | 1000 ft | UL Style 2464 | Multi-Pair | Polypropylene (PP) |
