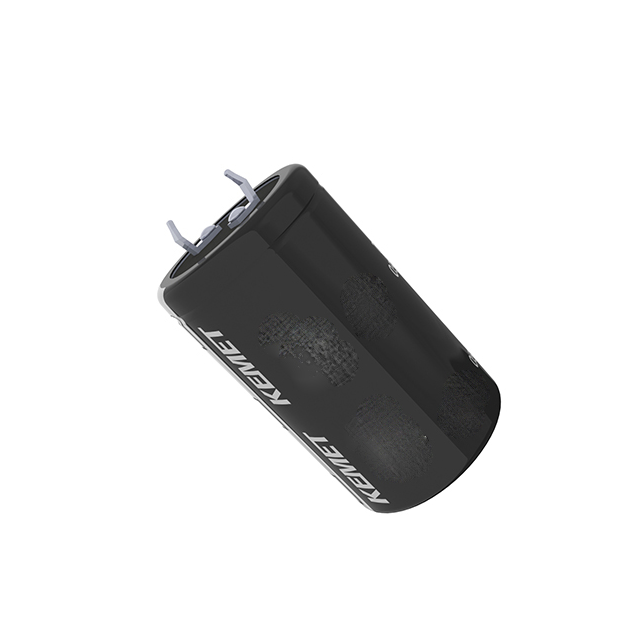

ELH478M Series

Manufacturer: KEMET

Catalog

CAP ALUM 4700UF 20% 50V SNAP TH

Part	Capacitance	Tolerance	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Ripple Current @ Low Frequency	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]
KEMET ELH478M050AS1AA	4700 µF	20 %	30 mm	1.181 "	50 VDC	Through Hole	85 °C	-40 C	Polar	2.95 A	Radial Can - Snap-In	General Purpose	0.984 in	25 mm	3.422 A	2000 Hrs	0.394 in	10 mm
KEMET ELH478M063AR4AA	4700 µF	20 %		0.984 "	63 V	Through Hole	85 °C	-40 C	Polar	3.35 A	Radial Can - Snap-In	General Purpose			3.886 A	2000 Hrs	0.394 in	10 mm	42 mm	1.654 in	25 mm
KEMET ELH478M035AQ2AA	4700 µF	20 %		0.866 "	35 V	Through Hole	85 °C	-40 C	Polar	2.4 A	Radial Can - Snap-In	General Purpose			2.784 A	2000 Hrs	0.394 in	10 mm	32 mm	1.26 in	22 mm
